• -4AN High-Temp PTFE Braided Oil Feed Line (Stainless Steel Braid)
• Precision Garrett T25 T28 Specific 1.8mm Restrictor Fitting
• 6061-T6 Billet Aluminum Drain Flange
• High-Temp Reinforced NBR Oil Drain Hose
• Year-Specific Block Adapter Set (M10 or 1/8 BSPT Tee)
• Interface N-8092 Non-Asbestos Gasket
• Oil Pan Return Fitting
• Full Hardware Kit: High-Torque Clamps, and Annealed Copper Washers
Mazda MX-5 Miata (NA/NB) Garrett T25 T28 Complete Turbo Oil Feed & Return Kit
Mazda MX-5 Miata (NA/NB) Garrett T25 T28 Complete Turbo Oil Feed & Return Kit
Regular price
$112.25 USD
Regular price
Sale price
$112.25 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
No PayPal Account Required
We accept Visa, Mastercard, Amex, JCB
Click PayPal, then select "Pay with a Card"
Worldwide
DHL, FEDEX, EMSFast Ship
48H DispatchFree Ship
AU/US & MoreTailored
Customizable30-Day
ReturnsSecured
SSL Encrypted
JUNE HOLIDAY SHIPPING UPDATE
Please be advised that June 17 is our final shipping date before the upcoming national holiday break.
June 17
Last Dispatch
June 18-21
No Shipping
June 22
Regular Resumes
Technical support remains active during the holiday period.
Technical Description
The total oil management solution for your classic Garrett conversion. Upgrading your naturally aspirated Miata to a Garrett T25 or T28 journal-bearing turbo requires a perfectly balanced lubrication loop. Most DIY projects fail due to mismatched fittings or restricted drainage that leads to "Blue Smoke." This GryphonTek Signature Series Kit provides a coordinated, professional-grade system that handles both high-pressure delivery and unrestricted return—tailored specifically to your Miata’s chassis year.
[!] Selection Guide: Match Your Chassis Year
|
Selection |
Year / Engine |
Oil Feed Source |
Engine Side Fitting |
|---|---|---|---|
|

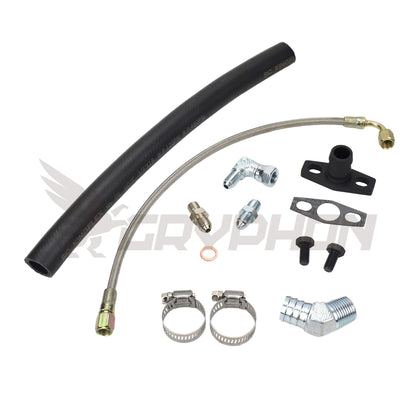

Early NA (MK1) |
1989–1993 (1.6L) |
Exhaust-Side Port |
Direct-Fit M10 Adapter |
|

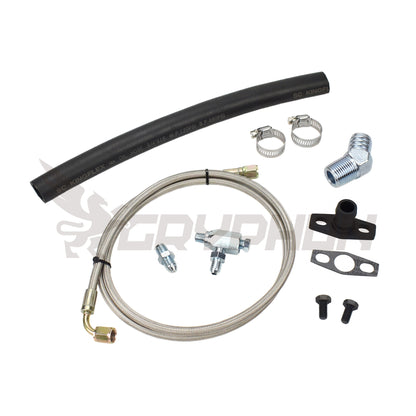

Late NA (MK1) |
1994–1997 (1.8L) |
Pressure Sensor Port |
Precision 1/8 BSPT Tee |
|
NB (MK2 / MK2.5) |
1998–2005 (1.8L) |
Pressure Sensor Port |
Precision 1/8 BSPT Tee |
- Year-Specific Integration: Precision adapters bridge factory oil sources to Garrett threads, eliminating sourcing guesswork and preventing block thread damage.
- Balanced Flow Dynamics: Features a precision 1.8mm restricted feed path to prevent flooding, paired with a high-flow drain to stop back-pressure and "Blue Smoke."
- Extreme Thermal Resilience: Combines PTFE braided feed lines with reinforced NBR return paths to survive the intense radiant heat of the Miata's "Hot Side."
- Harmonic Defense: Flexible plumbing architecture absorbs B6/BP engine vibrations, preventing the fatigue cracks common in rigid factory pipes.
