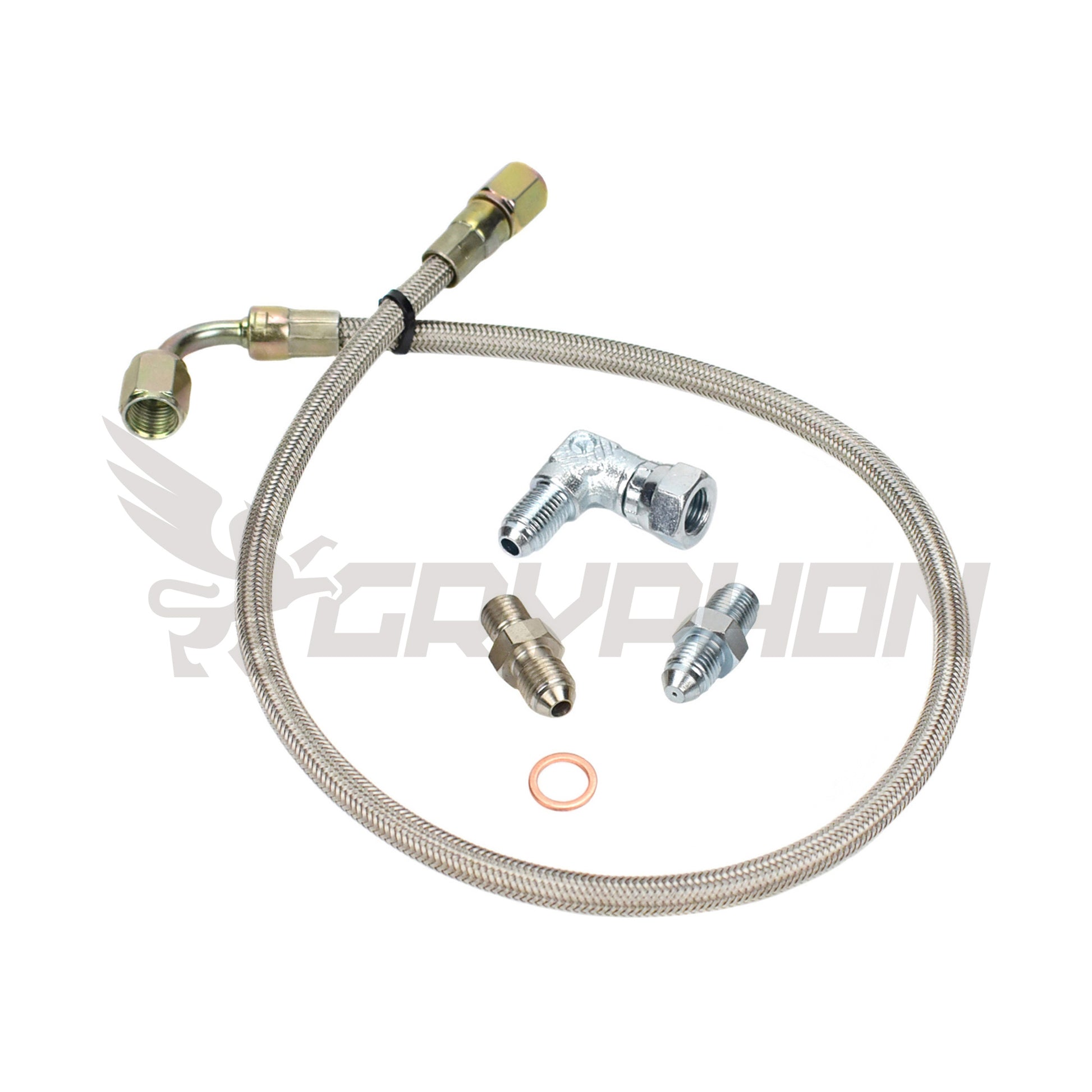

• GryphonTek Turbo Oil Feed Line Kit for Mazda MX-5 Miata NA with Garrett GT25R GT28R - Includes 1.0mm Restrictor and PTFE Line.
  • 4AN Turbo oil feed adapter fitting 1.0mm restrictor Fits Garrett GT25R GT28R GT30R GT35R GTX28R GTX29R GTX30R and GTX35R series models.
  • PTFE Teflon stainless braided hose for turbo, heat-resistant and durable
1 3

Mazda MX-5 Miata (NA/NB) Garrett GT25R GT28R Turbo Oil Feed Line Kit | 1.0mm Restrictor

Mazda MX-5 Miata (NA/NB) Garrett GT25R GT28R Turbo Oil Feed Line Kit | 1.0mm Restrictor

$84.73 USD
$84.73 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

48H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
JUNE HOLIDAY SHIPPING UPDATE

Please be advised that June 17 is our final shipping date before the upcoming national holiday break.

June 17 Last Dispatch
June 18-21 No Shipping
June 22 Regular Resumes

Technical support remains active during the holiday period.

View full details

Technical Description

Protect your ball-bearing investment with year-specific precision. Upgrading your naturally aspirated Mazda Miata to a Garrett GT25R or GT28R series turbo provides elite response, but these dual ball-bearing cartridges demand strict oil pressure regulation. This GryphonTek Signature Series Kit is the professional foundation, featuring a calibrated 1.0mm restrictor and custom-matched block adapters tailored specifically to your Miata’s chassis year for a zero-leak, smoke-free conversion.

[!] Selection Guide: Match Your Chassis Year

Selection

Year / Engine

Oil Feed Source

Included Hardware

Early NA (MK1)

1989–1993 (1.6L)

Exhaust-Side Port

Direct-Fit M10 Adapter

Late NA (MK1)

1994–1997 (1.8L)

Pressure Sensor Port

Precision 1/8 BSPT Tee

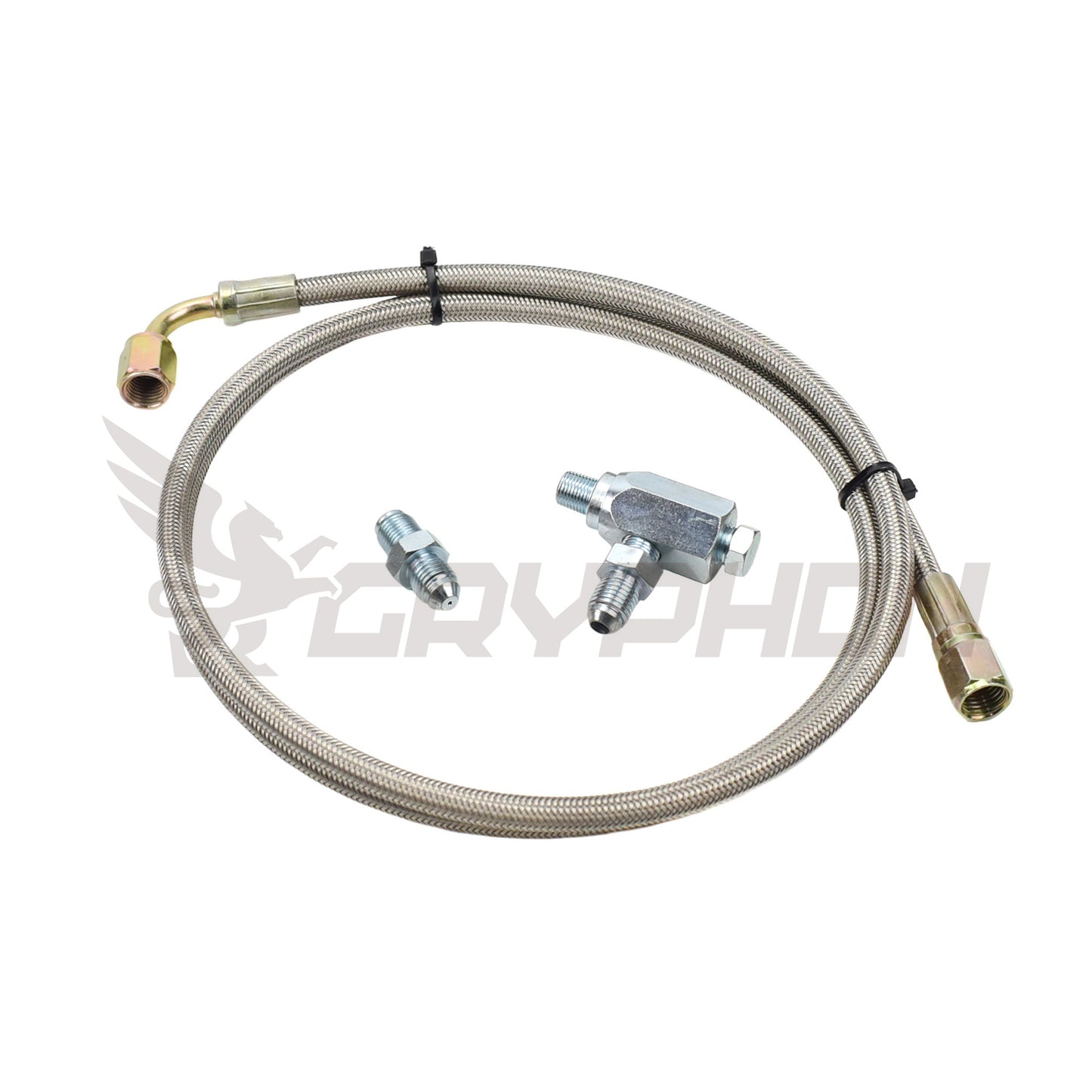

NB (MK2 / MK2.5)

1998–2005 (1.8L)

Pressure Sensor Port

Precision 1/8 BSPT Tee
  • Year-Specific Integration: Custom-matched block adapters eliminate technical guesswork and prevent thread damage for every Miata generation.
  • Ball-Bearing Flow Control: Integrated 1.0mm precision restrictor prevents high-pressure flooding, protecting Garrett seals from blow-by and blue smoke.
  • Thermal Radiant Defense: Motorsport-grade PTFE braided stainless steel core handles intense radiant heat without becoming brittle.
  • Harmonic Absorption: Flexible -4AN architecture absorbs high-frequency B6/BP harmonics, eliminating the stress-cracks common in rigid pipes.

Specifications & Data

Kit Included +

• -4AN PTFE Braided Oil Feed Line (Stainless Steel Braid)
• Year-Specific Block Adapter (Custom Selected)
• Garrett Specific 1.0mm Restrictor Fitting (-4AN Flare)

Vehicle Compatibility +

• Make: Mazda
• Models: Miata / MX-5 MK1 (NA), MK2/MK2.5 (NB)
• Engines: 1.6L (B6) / 1.8L (BP) Naturally Aspirated to Turbo conversion
• Year: 1989–2005

Turbo Compatibility +

• Turbo: Garrett Ball-Bearing: GT25R, GT2554R, GT2560R, GT28R, GT2860R, GT2871R

Product Specifications +

• Line Material: PTFE Core with 304 Stainless Steel Braid
• Restrictor Size: 1.0mm (Optimized for Dual Ball-Bearing)
• Benefit: Prevents turbo flooding and stops "Blue Smoke" issues
• Installation: 100% Bolt-on to specified chassis and Garrett inlet
