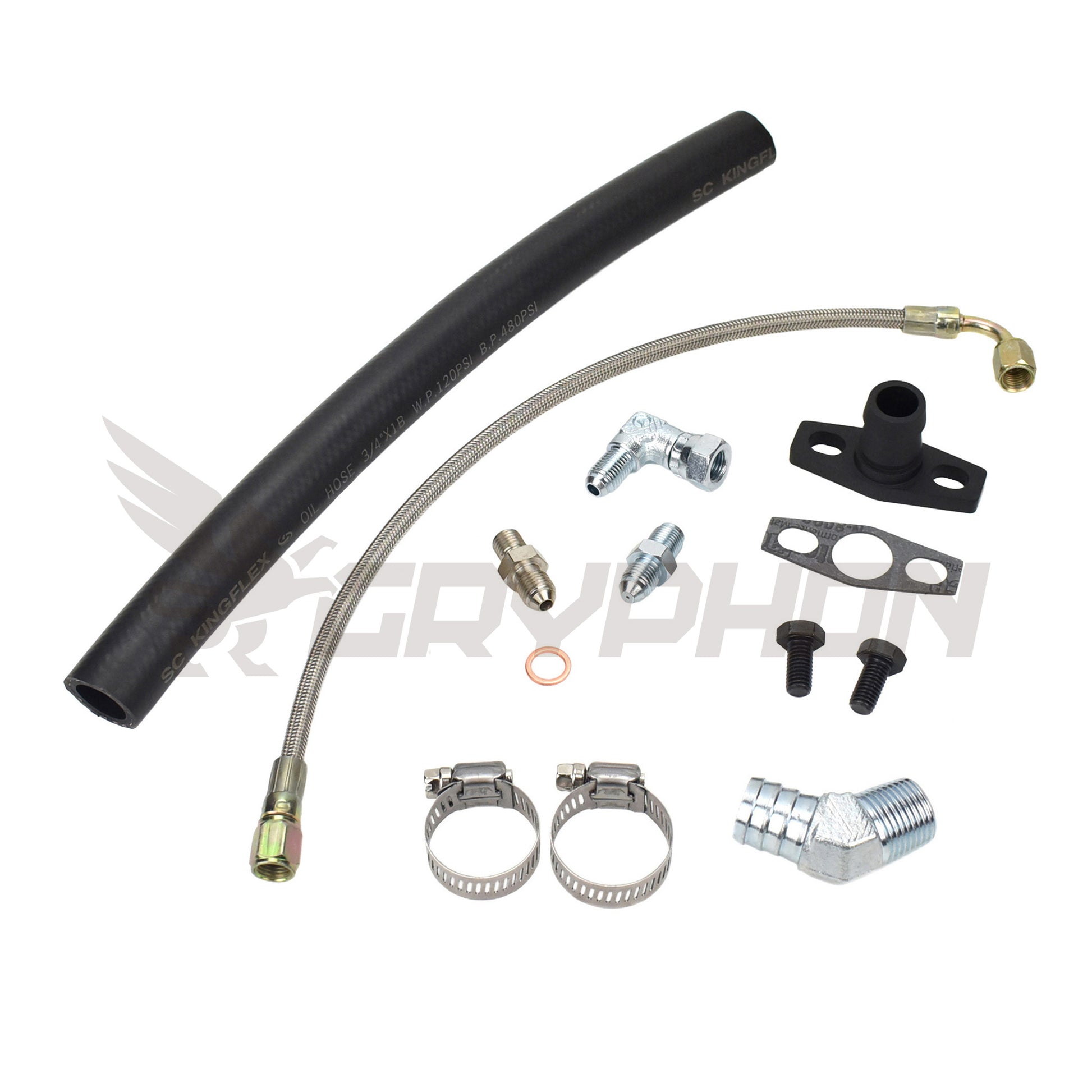

• GryphonTek Complete Turbo Oil Feed and Return Line Kit for Mazda MX-5 Miata NA with Garrett GT25R GT28R.
  • PTFE Teflon stainless braided hose for turbo, heat-resistant and durable
1 4

Mazda MX-5 Miata (NA/NB) Garrett GT25R GT28R Complete Turbo Oil Feed & Return Line Kit

Mazda MX-5 Miata (NA/NB) Garrett GT25R GT28R Complete Turbo Oil Feed & Return Line Kit

$112.25 USD
$112.25 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

48H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
View full details

Technical Description

The definitive all-in-one oiling loop refresh for your Garrett upgrade. Upgrading your naturally aspirated Mazda Miata to a Garrett GT25R or GT28R series turbocharger requires a fundamental shift in lubrication logic. Dual ball-bearing cartridges demand strict pressure regulation (1.0mm) paired with high-volume drainage to prevent seal failure. This GryphonTek Signature Series Kit provides a coordinated, professional-grade loop that handles both high-pressure delivery and unrestricted return, tailored specifically to your Miata’s chassis year.

[!] Selection Guide: Match Your Chassis Year

Selection

Year / Engine

Oil Feed Source

Included Hardware

Early NA (MK1)

1989–1993 (1.6L)

Exhaust-Side Port

Direct-Fit M10 Adapters

Late NA (MK1)

1994–1997 (1.8L)

Pressure Sensor Port

Precision 1/8 BSPT Tee

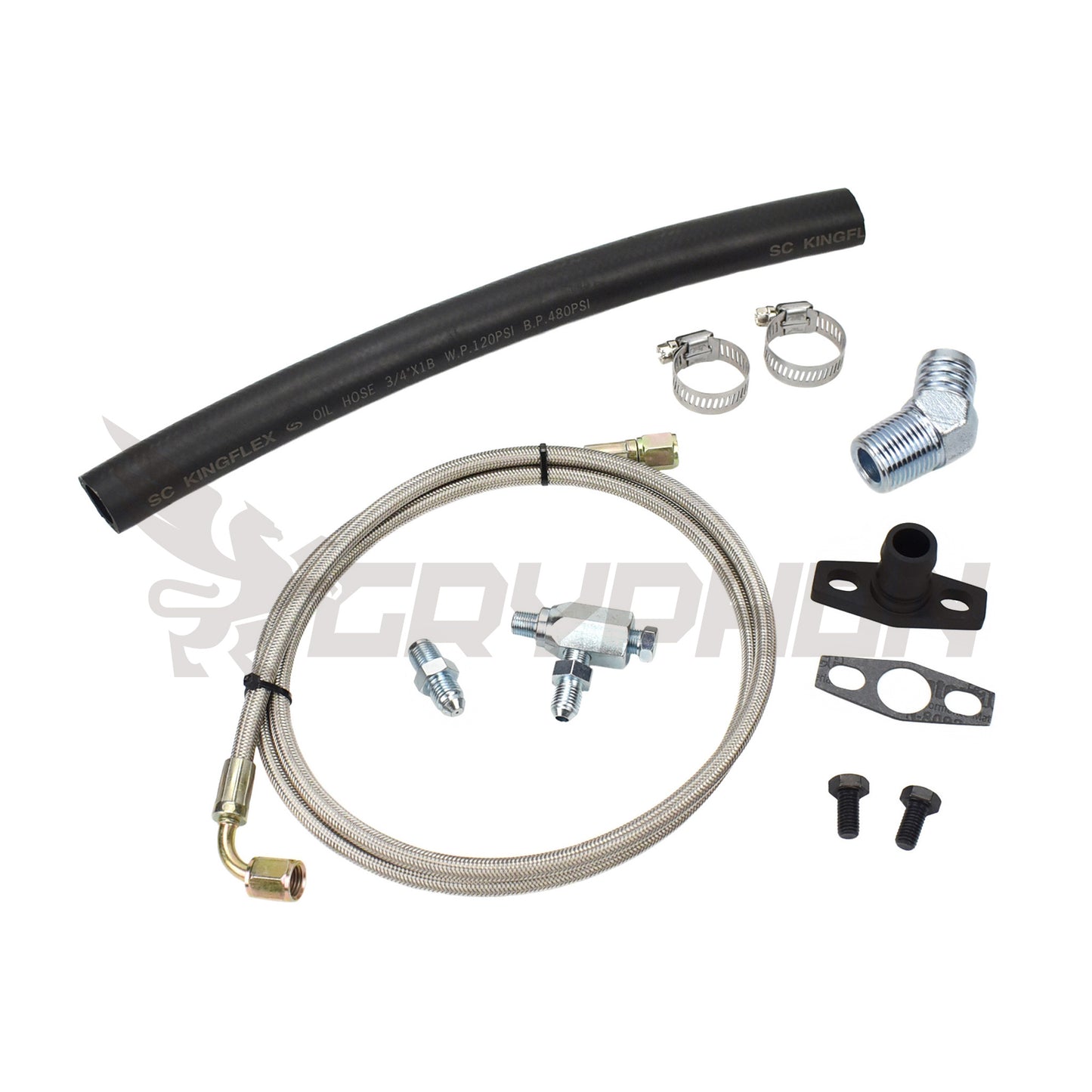

NB (MK2 / MK2.5)

1998–2005 (1.8L)

Pressure Sensor Port

Precision 1/8 BSPT Tee
  • Year-Specific Integration: Custom-matched block adapters prevent thread damage and ensure a zero-leak source connection for every Miata generation.
  • Ball-Bearing Pressure Protection: Integrated 1.0mm precision restrictor prevents high-pressure flooding, safeguarding Garrett internal seals from blow-by and blue smoke.
  • High-Flow Return Path: GT-specific billet aluminum drain flange and reinforced NBR plumbing ensure rapid oil evacuation, eliminating back-pressure issues.
  • Thermal Defense: Motorsport-grade PTFE and reinforced NBR construction survive intense radiant heat cycles without hardening or cracking.

Specifications & Data

Kit Included +

• -4AN PTFE Braided Oil Feed Line (Stainless Steel Braid)
• Garrett-Specific 1.0mm Restrictor Fitting (-4AN Flare)
• 6061-T6 Billet Aluminum Garrett Drain Flange
• High-Temp Reinforced NBR Oil Drain Hose
• Interface N-8092 Non-Asbestos Gasket (1mm thickness)
• Oil Pan Return Fitting
• Full Hardware Kit: Fittings, Clamps, and Copper Washers

Vehicle Compatibility +

• Make: Mazda
• Models: Miata / MX-5 MK1 (NA), MK2/MK2.5 (NB)
• Engines: 1.6L (B6) / 1.8L (BP) Naturally Aspirated to Turbo conversion
• Year: 1989–2005

Turbo Compatibility +

• Turbo: Garrett Ball-Bearing: GT25R, GT2554R, GT2560R, GT28R, GT2860R, GT2871R

Product Specifications +

• Materials: PTFE / 304 Stainless Braid / 6061-T6 Billet / NBR
• Installation: Requires tapping the oil pan
