• -4AN High-Temp PTFE Braided Oil Feed Line (Stainless Steel Braid)
• GBC-Specific Turbo Inlet Fitting (Optimized Restrictor)
• Year-Specific Block Adapter Set (M10 or 1/8 BSPT Tee)
• High-Temp Reinforced NBR Oil Drain Hose
• 6061-T6 Billet Aluminum GBC Drain Flange
• Interface N-8092 Non-Asbestos Gasket (1mm thickness)
• Oil Pan Return Fitting
• Full Hardware Kit: High-Torque Clamps, and Copper Washers
Mazda MX-5 Miata (NA/NB) Garrett GBC-Series Complete Turbo Oil Feed & Return Line Kit
Mazda MX-5 Miata (NA/NB) Garrett GBC-Series Complete Turbo Oil Feed & Return Line Kit
Regular price
$111.90 USD
Regular price
Sale price
$111.90 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
No PayPal Account Required
We accept Visa, Mastercard, Amex, JCB
Click PayPal, then select "Pay with a Card"
Worldwide
DHL, FEDEX, EMSFast Ship
48H DispatchFree Ship
AU/US & MoreTailored
Customizable30-Day
ReturnsSecured
SSL Encrypted
JUNE HOLIDAY SHIPPING UPDATE
Please be advised that June 17 is our final shipping date before the upcoming national holiday break.
June 17
Last Dispatch
June 18-21
No Shipping
June 22
Regular Resumes
Technical support remains active during the holiday period.
Technical Description
The definitive oiling solution for your oil-cooled Garrett GBC upgrade. Upgrading your naturally aspirated Miata to a Garrett GBC20-300 or GBC22-350 provides modern response without the complexity of a cooling loop. This GryphonTek Signature Series Kit is the professional system that handles both high-pressure delivery and unrestricted drainage in one coordinated package, tailored specifically to your Miata’s chassis year.
[!] Selection Guide: Match Your Chassis Year
|
Selection |
Year / Engine |
Oil Feed Source |
Included Hardware |
|---|---|---|---|
|

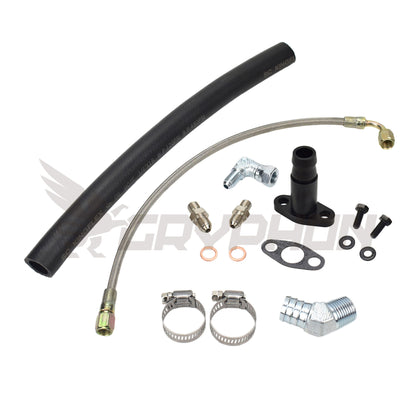

Early NA (MK1) |
1989–1993 (1.6L) |
Exhaust-Side Port |
Direct-Fit M10 Adapters |
|

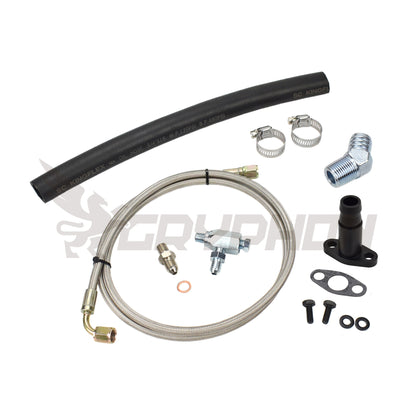

Late NA (MK1) |
1994–1997 (1.8L) |
Pressure Sensor Port |
Precision 1/8 BSPT Tee |
|
NB (MK2 / MK2.5) |
1998–2005 (1.8L) |
Pressure Sensor Port |
Precision 1/8 BSPT Tee |
- Year-Specific Integration: Precision adapters bridge factory oil sources to GBC threads, eliminating sourcing guesswork and preventing block thread damage.
- GBC Calibrated Flow: Features a precision restrictor matched for GBC journal bearings to prevent seal blow-by and "Blue Smoke" issues.
- Extreme Thermal Resilience: Motorsport-grade PTFE braided feed lines and reinforced NBR drainage paths survive intense "Hot Side" radiant heat.
- Harmonic Defense: Flexible plumbing architecture absorbs B6/BP engine vibrations, preventing the fatigue cracks common in rigid factory pipes.
