Toyota Hilux 2.8L 3L / 3.0L 5L 5LE + TD04 Turbo Oil Drain Hose Kit

Oil Drain System for Hilux Diesel Upgrading to TD04 Turbo

The Mitsubishi TD04 turbocharger is a popular and well-matched upgrade for Hilux N/A diesel engines, offering quick spool and reliable performance for work trucks, off-road builds, and daily use.

Because the 2.8L 3L / 3.0L 5L / 5LE engines were not factory-equipped with turbo oil return fittings, a complete drain solution is required when fitting a TD04 on Hilux platforms such as LN106, LN107, LN111, LN130, LN147, LN167, and LN172.

This Gryphontek turbo oil drain hose kit provides the correct TD04-pattern drain flange, heat-resistant NBR hose, steel fittings, 1 mm gasket, and hardware needed to create a dependable oil return path suitable for diesel engine operating conditions.

Designed to withstand vibration, extended load, and the heavier viscosity of diesel oil, it ensures consistent drainage from the TD04 CHRA back to the sump.

Key Features

‣ Application: Toyota Hilux N/A diesel engines — LN106 / LN107 / LN111 / LN130（2.8L 3L）及 LN147 / LN167 / LN172（3.0L 5L / 5LE）
‣ Turbo Compatibility: Mitsubishi TD04 journal-bearing turbo
‣ Hose Construction: High-temperature NBR oil drain hose designed for diesel heat and oil characteristics
‣ Flange Material: 6061-T6 CNC-machined aluminum TD04-pattern turbo drain flange
‣ Fittings: Mild-steel drain fittings engineered for durability under diesel vibration and load
‣ Gasket: Interface N-8092 1 mm non-asbestos oil drain gasket
‣ Hardware: Stainless hose clamps + class 8.8 high-tensile bolts
‣ Diesel Conversion Ready: Supplies all required oil drain components not present on factory N/A Hilux engines
‣ Performance Benefit: Provides a stable, leak-free oil return pathway for TD04 turbos during towing, off-road use, and daily driving
‣ Custom Length Option: Extended hose available to suit various manifold or turbo mounting positions

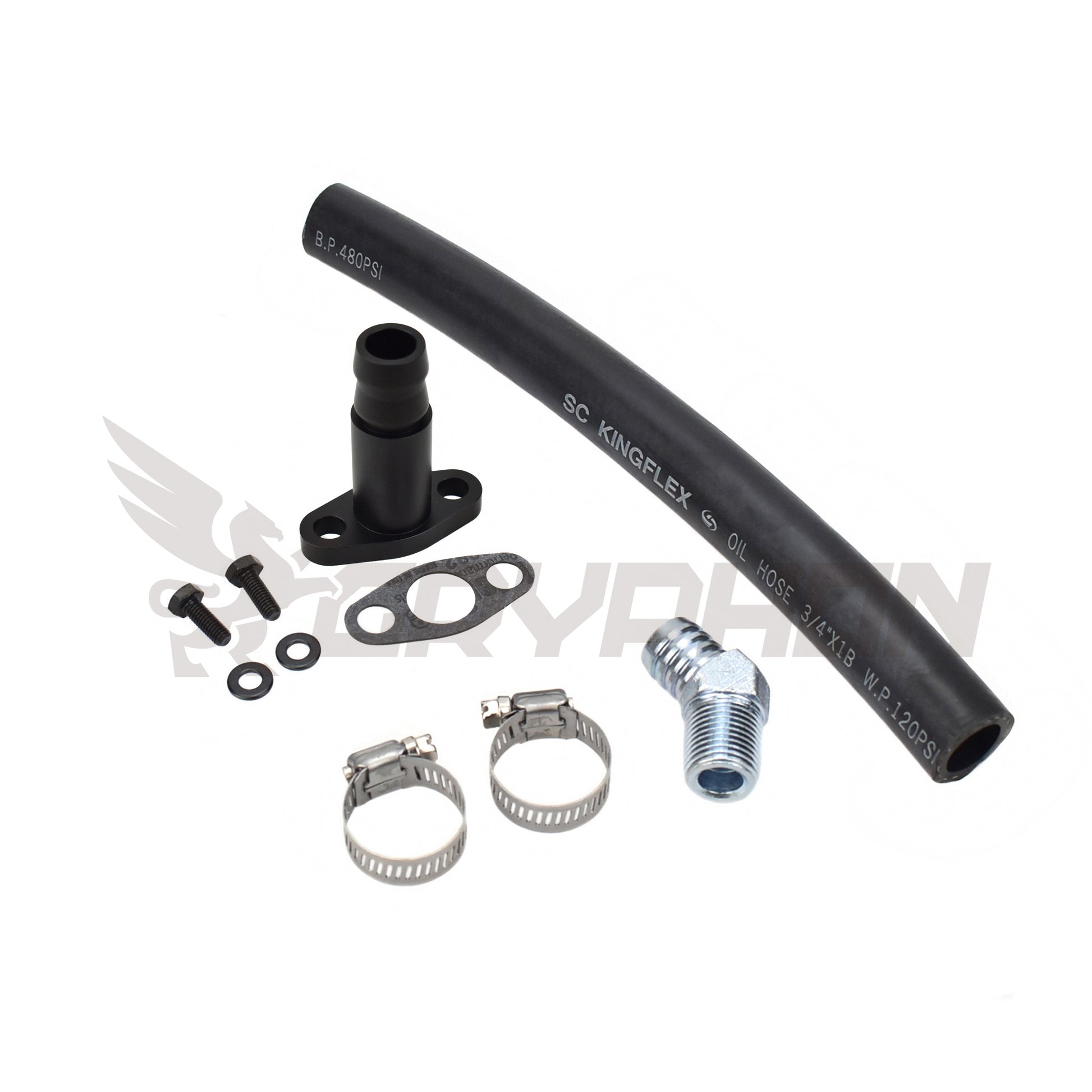

Kit Includes

• NBR turbo oil drain hose
• 6061-T6 CNC-machined TD04 drain flange
• 1 mm Interface N-8092 gasket
• Mild-steel drain fittings
• High-tensile bolts
• Hose clamps

Dependable Oil Return Setup for TD04-Powered Hilux Diesel Builds

A proper oil drain system is essential when adding a TD04 turbo to a Hilux N/A diesel engine.
This Gryphontek kit provides all necessary fittings and hardware to ensure smooth, reliable oil evacuation for long-term TD04 turbo performance.

⚙️ Upgrade your Hilux diesel turbo conversion with the oil drain kit engineered specifically for TD04 installations.
