Toyota Hilux 2.8L 3L / 3.0L 5L 5LE + Garrett G-Series G25 Turbo Oil Drain Hose Kit

Oil Drain Hose Kit for Hilux N/A Diesel Running Garrett G25 Turbo

The Garrett G-Series G25 delivers modern boost response and efficiency, making it a strong upgrade choice for Toyota Hilux 2.8L 3L / 3.0L 5L / 5LE engines originally built as naturally aspirated diesels.
Because these engines lack factory turbo oil return provisions, a proper oil drain system must be added when installing a G25 turbo on Hilux chassis such as LN106, LN107, LN111, LN130, LN147, LN167, and LN172.

This Gryphontek turbo oil drain hose kit provides the required G25-pattern drain flange, heat-resistant NBR hose, fittings, gasket, and hardware to form a dependable oil return path compatible with the G-Series CHRA.
Built to handle diesel operating temperatures, vibration, and continuous load, it ensures oil flows back into the sump cleanly and without leakage—essential for G25 turbo reliability on mechanical-injection Hilux engines.

Key Features

‣ Application: Toyota Hilux N/A diesel engines — LN106 / LN107 / LN111 / LN130（2.8L 3L）及 LN147 / LN167 / LN172（3.0L 5L / 5LE）
‣ Turbo Compatibility: Garrett G-Series G25（G25-550 / G25-660）

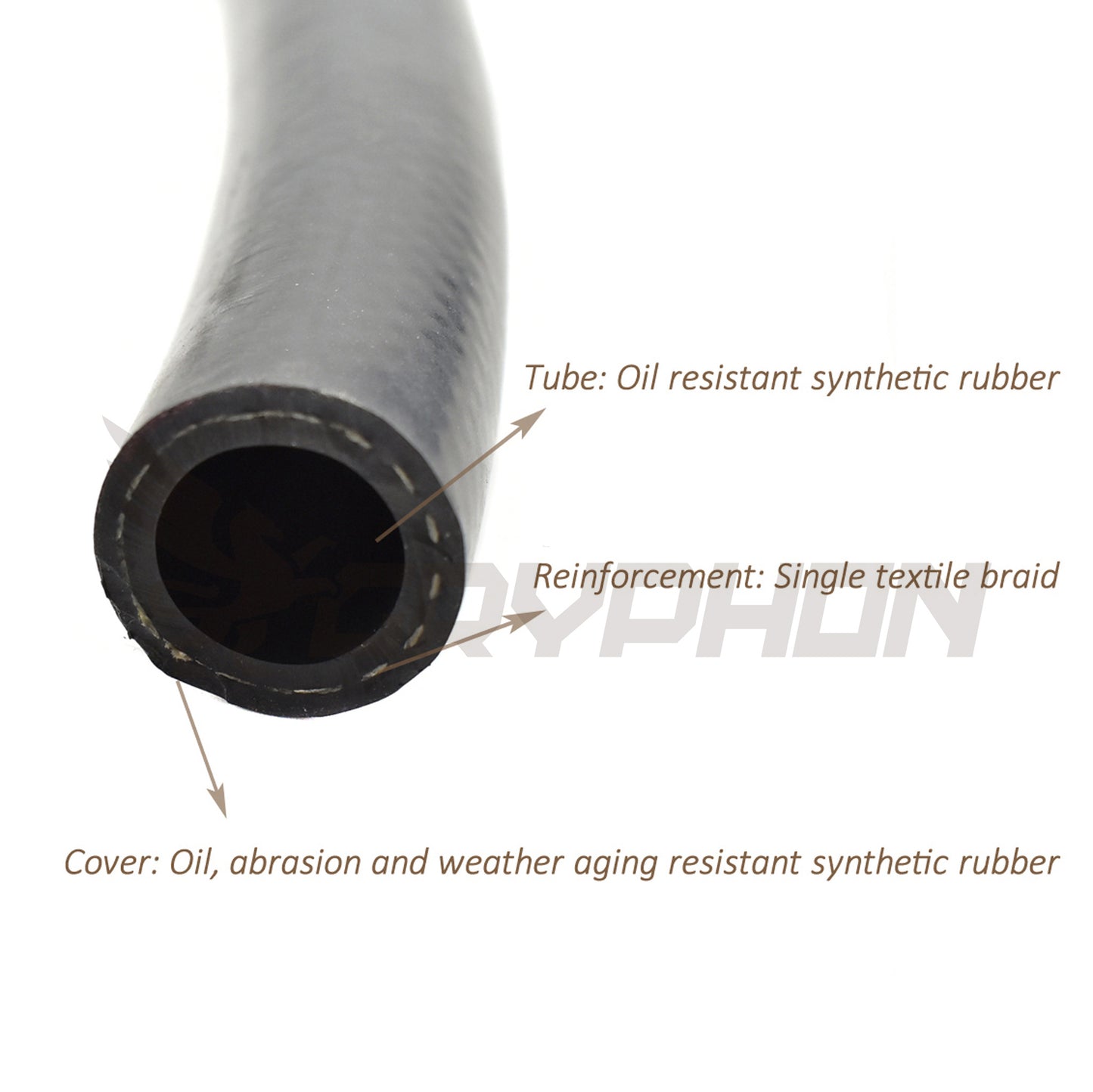

‣ Hose Construction: High-temperature NBR oil drain hose for diesel-grade heat and oil resistance
‣ Flange Material: CNC-machined 6061-T6 aluminum G25-pattern turbo drain flange
‣ Fittings: Durable mild-steel drain fittings engineered for rugged diesel use
‣ Gasket: Interface N-8092 1 mm non-asbestos gasket
‣ Hardware: Includes stainless hose clamps + high-tensile class 8.8 bolts
‣ Diesel Conversion Ready: Supplies all missing components needed when adding a G25 turbo to Hilux N/A engines
‣ Performance Benefit: Supports smooth oil evacuation for G25 turbos under load, towing, and off-road use
‣ Custom Length Option: Extended hose available for custom exhaust manifold layouts

Kit Includes

• NBR turbo oil drain hose
• 6061-T6 CNC-machined G25 drain flange
• 1 mm Interface N-8092 gasket
• Mild-steel oil drain fittings
• High-tensile bolts
• Hose clamps

A Dependable Oil Drain Solution for Garrett G25 Diesel Turbo Installs

The G-Series G25 turbo requires the correct drain interface and hose routing to ensure clean, consistent lubrication.
This Gryphontek kit provides all the essential components needed to equip your Hilux 2.8L / 3L / 5L / 5LE with a reliable, leak-free oil return system during the N/A → Turbo conversion.

⚙️ Upgrade your Hilux diesel turbo build with components engineered specifically for G25 turbo integration.
