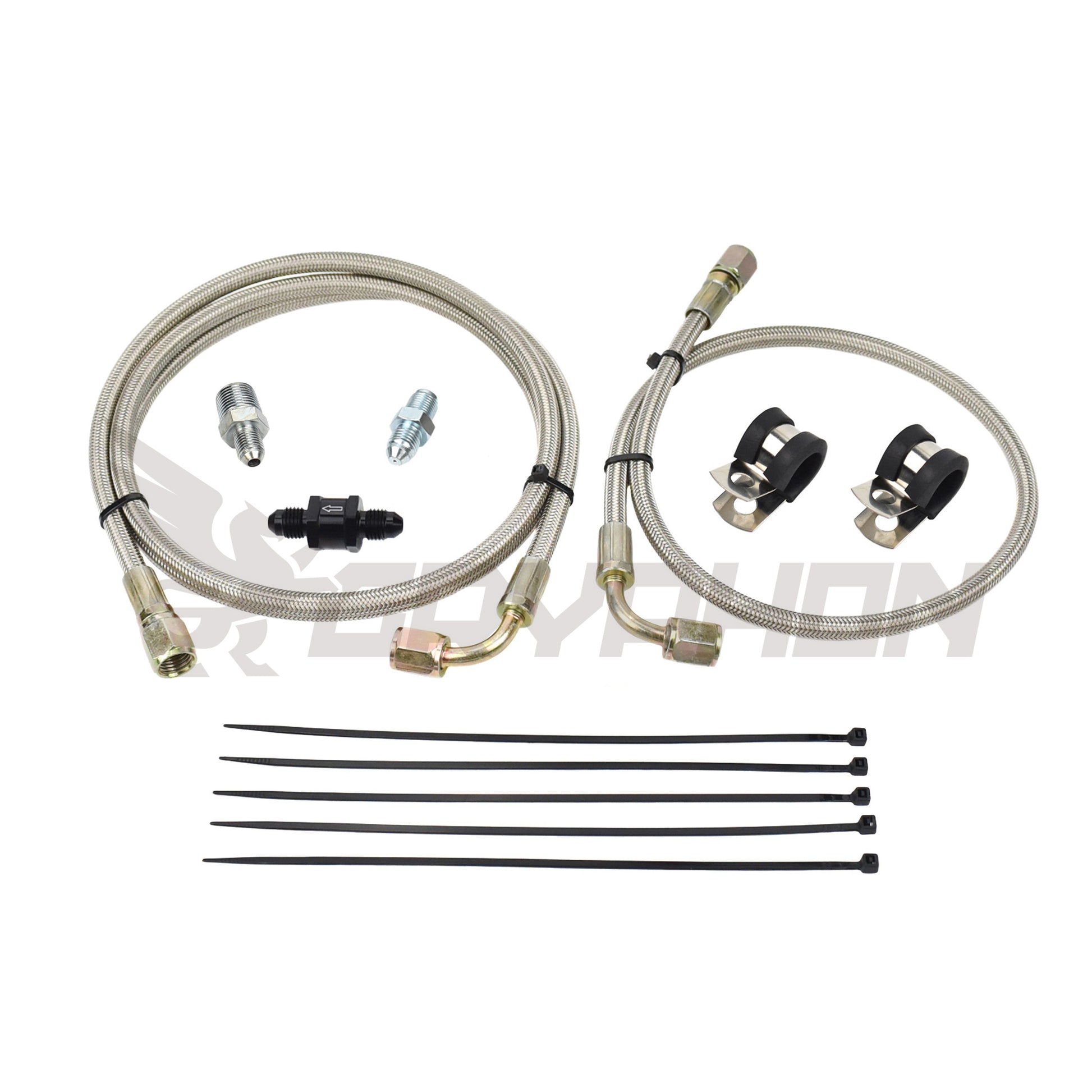

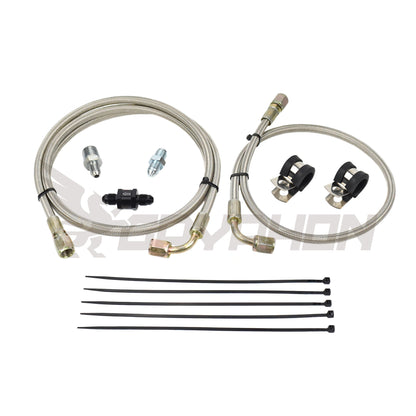

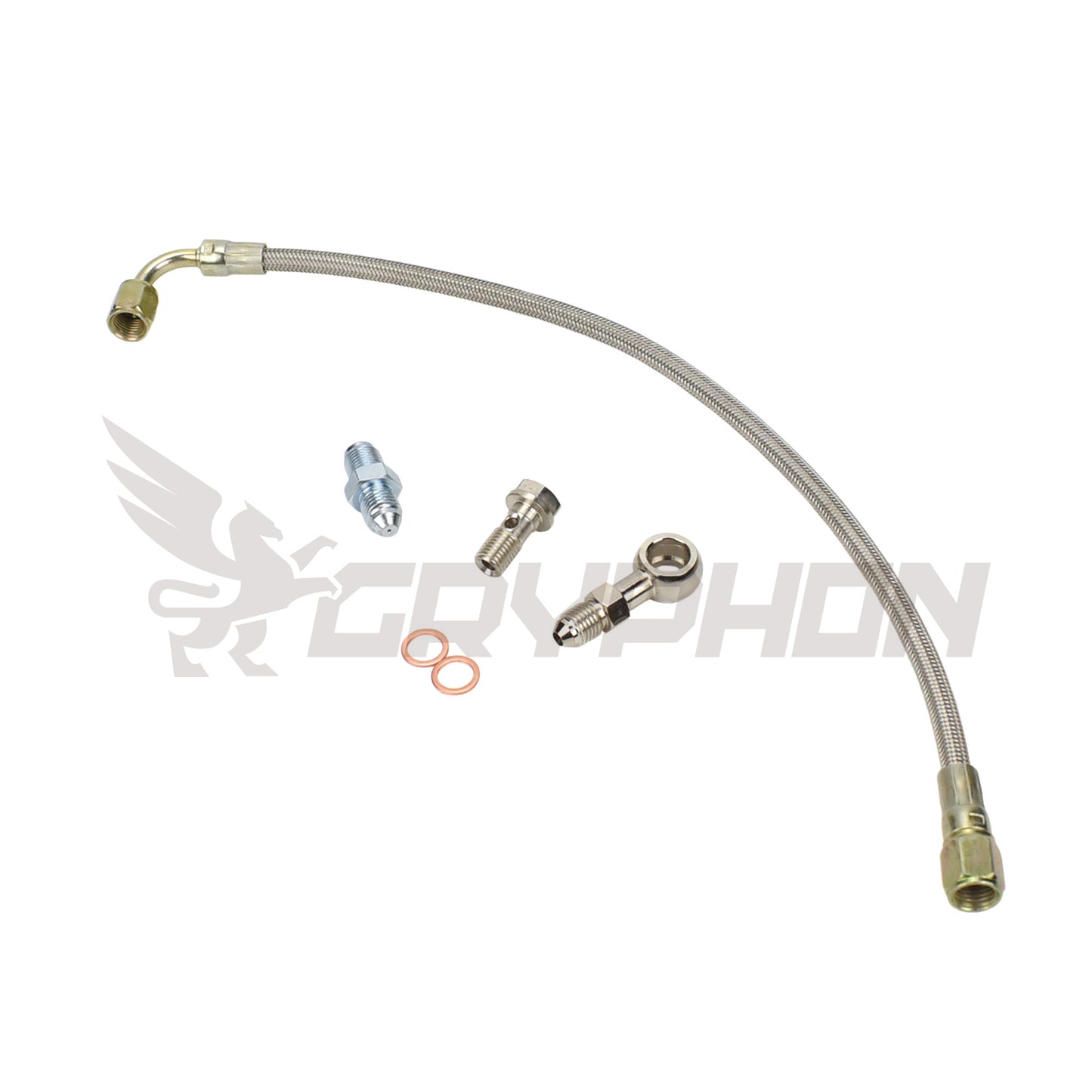

Mitsubishi 4G63T EVO 4–9 + Garrett GT30R GT35R Turbo Oil Feed Line Kit|4AN Braided

Mitsubishi 4G63T EVO 4–9 + Garrett GT30R GT35R Turbo Oil Feed Line Kit|4AN Braided

Regular price $62.98 USD
Regular price $0.00 USD Sale price $62.98 USD
Sale Sold out
Shipping calculated at checkout.

Designed specifically for Mitsubishi EVO 4–9 4G63T engines, this Gryphontek 4AN PTFE Teflon stainless-braided oil feed line kit provides a clean, bolt-on oil feed solution for Garrett GT30R and GT35R turbos installed in the factory stock position.

The OEM TD05HR oil line cannot be reused—its fittings and flow rate are incompatible with Garrett ball-bearing turbos.

This kit includes a 1.0 mm restrictor fitting precisely calibrated for GT-series cores, ensuring the correct oil pressure and flow to protect turbo bearings from over-oiling or coking.

Available in Head feed (OEM-style) or Oil filter housing feed (for cleaner, filtered oil) configurations to suit your preferred routing.

Application: Mitsubishi Lancer Evolution IV–IX (EVO 4–9) with 4G63T engine
Turbo Compatibility: Garrett GT30R / GT35R (ball-bearing, stock-position mount)
Feed Location Options: Head feed or Oil filter housing feed
Oil Control: Built-in 1.0 mm restrictor ensures precise oil pressure and flow
Line Construction: 4AN PTFE Teflon stainless-braided hose with pre-crimped stainless ends
Fittings: Mild-steel adapters with anti-corrosion finish
Direct-Fit Installation: Designed to connect cleanly to the stock turbo position
Reliability Upgrade: Replaces aging OEM hardline prone to blockage or leakage

Garrett GT30R and GT35R turbos require precise oil metering for long bearing life.
This Gryphontek 4AN PTFE braided oil feed kit with 1.0 mm restrictor delivers the correct flow rate and pressure when mounted in the stock position—no fabrication or guesswork needed.

⚙️ Choose between head or filter housing feed and enjoy plug-and-play fitment with guaranteed reliability.
