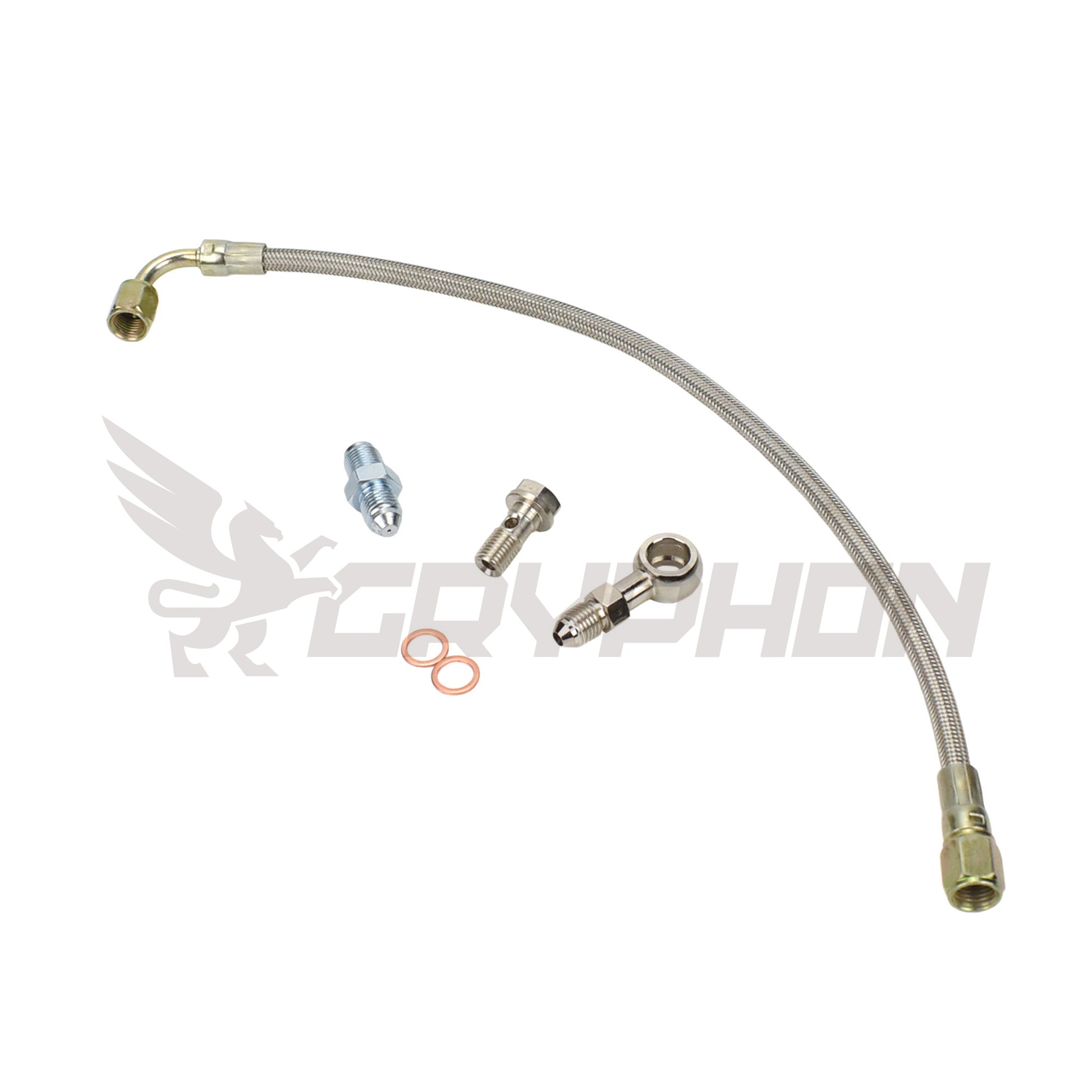

• Turbo oil feed line kit for Mitsubishi EVO 4–9 4G63T with Garrett G25 / G30 / G35 turbo, 4AN PTFE braided stainless hose with 1.0 mm restrictor
  • PTFE Teflon stainless braided hose for turbo, heat-resistant and durable
1 3

Mitsubishi 4G63T EVO 4–9 + Garrett G-Series G25 G30 G35 Turbo Oil Feed Line Kit｜4AN Braided

Mitsubishi 4G63T EVO 4–9 + Garrett G-Series G25 G30 G35 Turbo Oil Feed Line Kit｜4AN Braided

$85.02 USD
$0.00 USD $85.02 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

48H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
View full details

Technical Description

Upgrade your Mitsubishi EVO 4–9 4G63T to the latest Garrett G25 / G30 / G35 ball-bearing turbo with this Gryphontek 4AN PTFE Teflon stainless-braided oil feed line kit, engineered specifically for G-Series oiling requirements.

The factory TD05HR oil line cannot be reused—the OEM fittings and flow rate are incompatible with modern Garrett ball-bearing cores. This kit includes a 1.0 mm restrictor fitting to regulate pressure precisely, ensuring your G-Series turbo receives clean, stable oil without risk of over-oiling.

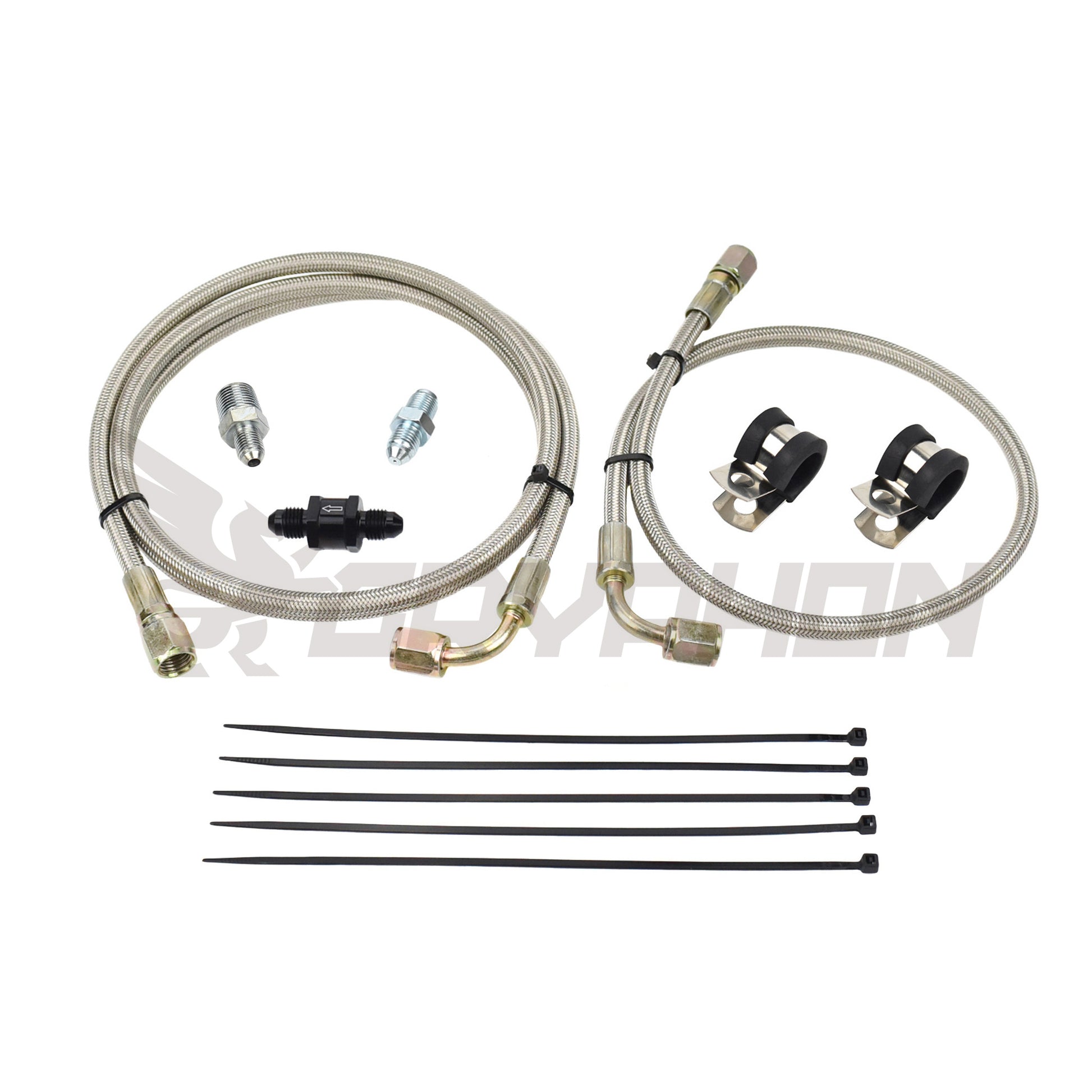

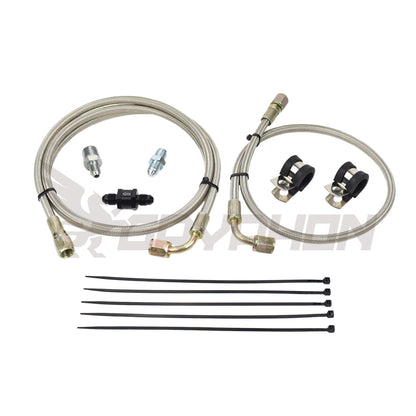

Available in two feed configurations — Head location (OEM-style) or Oil filter housing (for higher pressure and filtered oil supply) — providing flexibility for stock-mount setups.

‣ Application: Mitsubishi Lancer Evolution IV–IX (EVO 4–9) with 4G63T engine
‣ Turbo Compatibility: Garrett G-Series G25 / G30 / G35 ball-bearing turbo upgrade
‣ Feed Options: Head feed or Oil filter housing feed for optimal routing and pressure stability
‣ Oil Control: Integrated 1.0 mm restrictor for accurate oil flow to ball-bearing cores
‣ Line Construction: 4AN PTFE Teflon stainless-braided hose with pre-crimped ends for leak-free performance
‣ Fittings: Mild-steel adapters with anti-corrosion finish
‣ Performance Upgrade: Prevents over-oiling and bearing damage when installing Garrett G-Series turbo
‣ Installation: Direct-fit solution with factory mounting points and flexible routing options

Ball-bearing turbos demand precise oil control—too much pressure causes leaks, too little causes wear.
This Gryphontek 4AN PTFE oil feed kit with a 1.0 mm restrictor ensures balanced, filtered oil delivery to your Garrett G25 / G30 / G35 setup.

⚙️ Choose a performance-proven feed solution built for modern Garrett G-Series efficiency and EVO 4–9 fitment.
