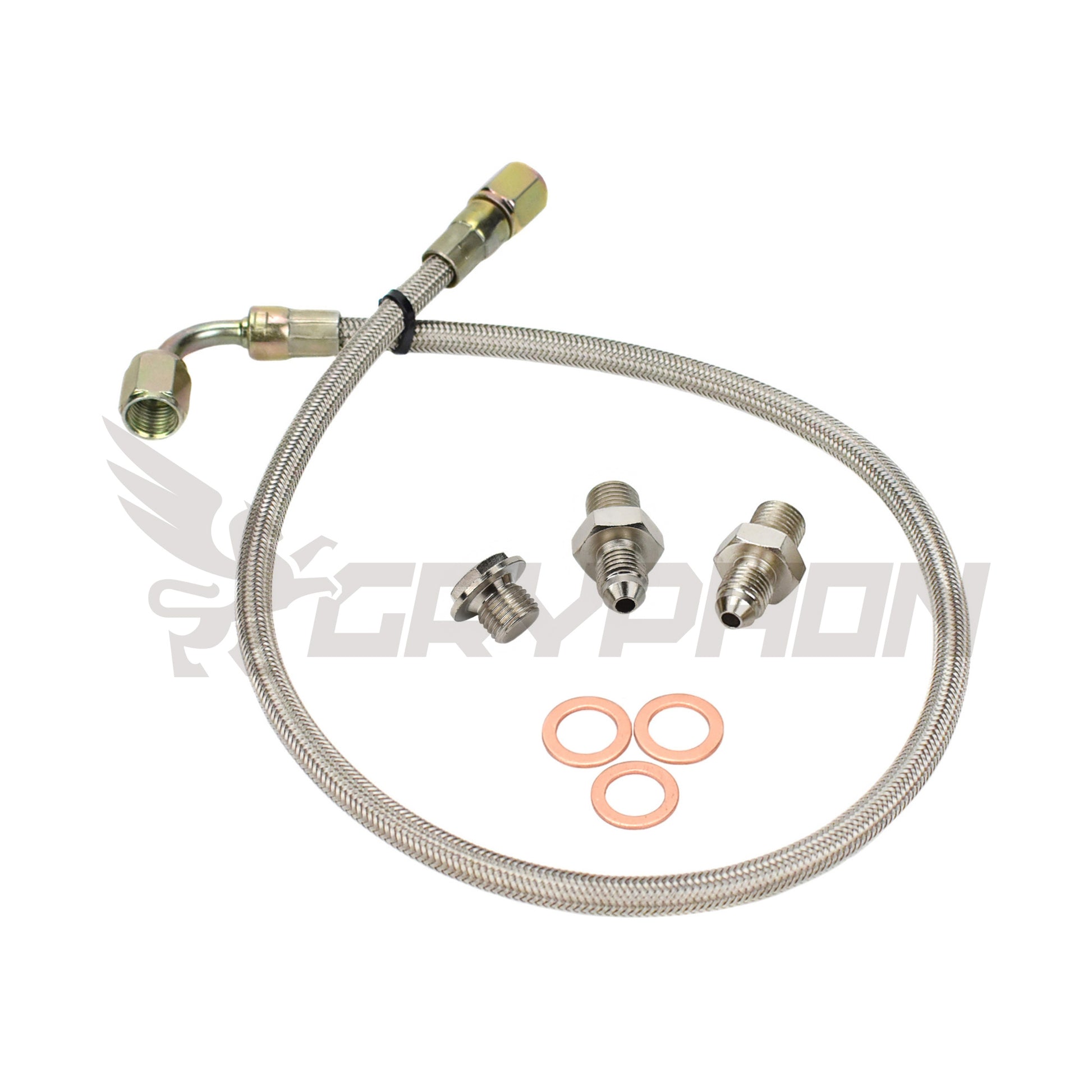

• Turbo oil feed line kit for Toyota 1JZ-GTE / 2JZ-GTE with Holset HX30 HX35 HX40 turbos, includes 4AN braided PTFE hose, fittings, and hardware.
  • PTFE Teflon stainless braided hose for turbo, heat-resistant and durable
1 2

Toyota 1JZ 2JZ Turbo Oil Feed Line Kit for Holset HX30 HX35 | -4AN PTFE

Toyota 1JZ 2JZ Turbo Oil Feed Line Kit for Holset HX30 HX35 | -4AN PTFE

$83.96 USD
$0.00 USD $83.96 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

48H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
View full details

Technical Description

This oil feed line kit is for Holset HX30 and HX35 single top mount turbo setups on Toyota 1JZ-GTE and 2JZ-GTE engines.

When converting a JZ engine to a Holset single turbo setup, the factory oil feed line cannot be reused. Incorrect fittings or poor routing can lead to oil leaks, unstable lubrication, or installation delays.

This kit uses a -4AN PTFE turbo oil feed line with matched fittings to provide a clean oil supply path for Holset HX turbo conversions.

  • Stable Oil Supply: -4AN feed line supports consistent turbo lubrication
  • No Restrictor Setup: Suitable for Holset HX turbos
  • Heat Resistant Line: PTFE core handles high engine bay temperatures
  • Direct Fitment: Includes matched fittings for easier installation

Specifications & Data

Kit Included +

• -4AN PTFE oil feed line
• Turbo oil feed fitting
• Engine side oil adapter
• Copper crush washers

Vehicle Compatibility +

• Make: Toyota
• Model: Supra JZA70 / JZA80, Chaser JZX90 / JZX100, Soarer JZZ30
• Engine: 1JZ-GTE / 2JZ-GTE Single Turbo Conversions

Turbo Compatibility +

• Holset HX30 HX35

Product Specifications +

• Feed Line Size: -4AN
• Restrictor: Non
• Line Material: PTFE inner with stainless braided outer
