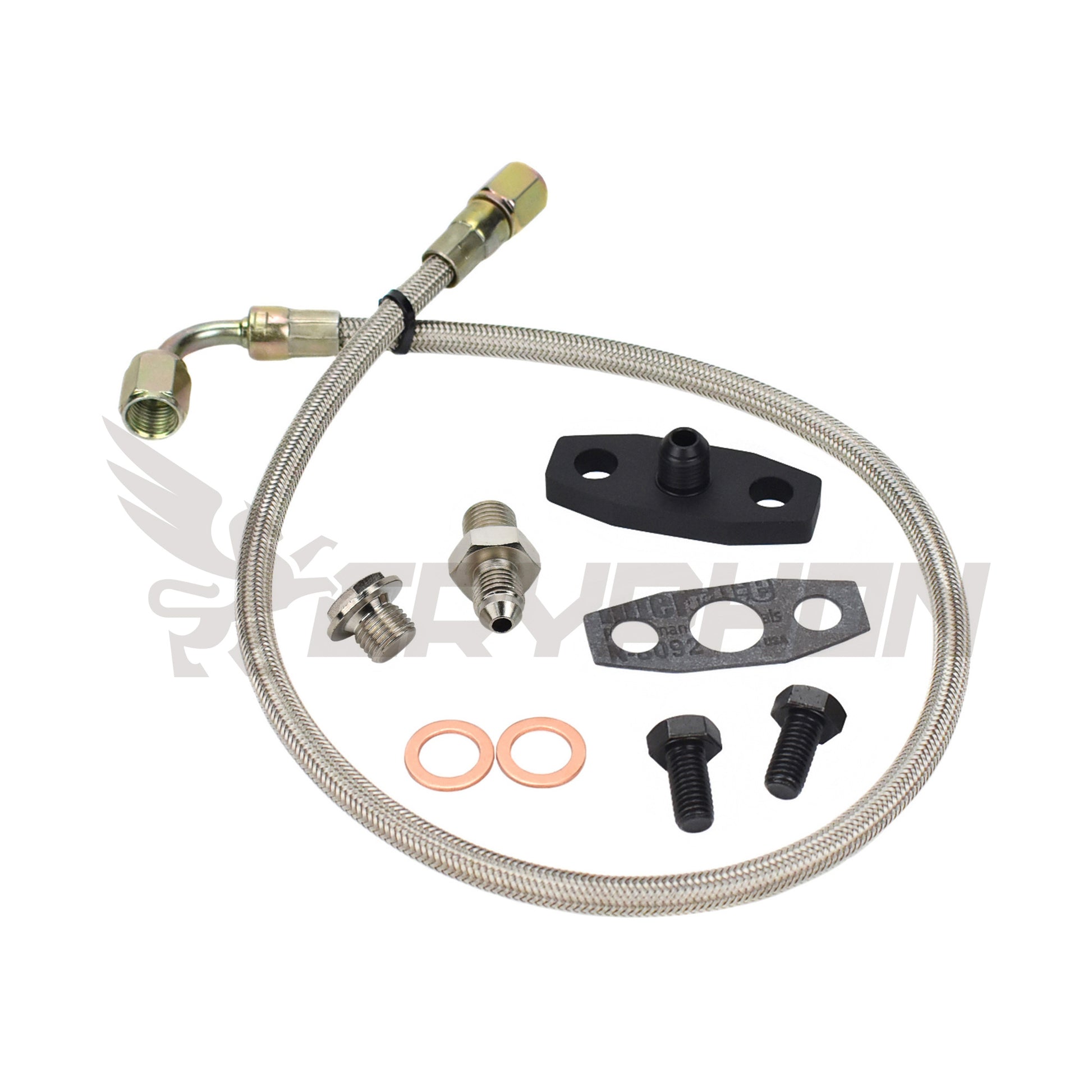

• Turbo oil feed line kit for Toyota 1JZ-GTE / 2JZ-GTE with Garrett GT37R GT40R GT42R GT45R GT47R turbos, includes 4AN braided PTFE hose, flange, gasket, and hardware.
  • PTFE Teflon stainless braided hose for turbo, heat-resistant and durable
1 2

Toyota 1JZ 2JZ Oil Feed Line Kit for Garrett GT40R GT42R GT45R GT47R | 2.0mm Restrictor

Toyota 1JZ 2JZ Oil Feed Line Kit for Garrett GT40R GT42R GT45R GT47R | 2.0mm Restrictor

$89.78 USD
$0.00 USD $89.78 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

48H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
View full details

Technical Description

This oil feed line kit is for Garrett GT40R, GT42R, GT45R, and GT47R sing top mount turbo setups on Toyota 1JZ-GTE and 2JZ-GTE engines.

JZ engines produce high oil pressure, and without proper control, excess oil flow can lead to leaks, turbo smoking, or seal problems even on large frame turbos.

This kit uses a -4AN oil feed flange with a 2.0mm restrictor to help manage oil pressure and maintain stable oil delivery under high boost conditions.

  • Controlled Oil Pressure: 2.0mm restrictor suited for large frame turbos
  • Prevents Over-Oiling: Helps reduce leaks and turbo smoke
  • Heat Resistant Line: Handles high temperature engine environments
  • Direct Fitment: Includes matching flange and fittings

Specifications & Data

Kit Included +

• -4AN PTFE oil feed line
• Oil feed flange with 2.0mm restrictor
• Interface N-8092 gasket
• Class 8.8 high-tensile bolts
• Engine block oil fitting
• Copper washers

Vehicle Compatibility +

• Make: Toyota
• Model: Supra JZA70 / JZA80, Chaser JZX90 / JZX100, Soarer JZZ30
• Engine: 1JZ-GTE / 2JZ-GTE Single Turbo Conversions

Turbo Compatibility +

• Garrett GT40R GT42R GT45R GT47R

Product Specifications +

• Feed Line Size: -4AN
• Restrictor Size: 2.0mm
• Flange: 6061-T6 Billet Aluminum
• Material: PTFE inner with stainless braided outer

Support & Logistics

Shipping & Global Export +

Proudly exported to 75+ countries. All orders are dispatched via DHL Express, FedEx, or EMS from our Taiwan hub.

  • AU / USA: 3-5 Business Days.
  • Rest of World: 5-12 Business Days.
  • Tracking: End-to-end tracking number provided within 48H.
Import Duties & Taxes +

We’ve optimized our tax process for core markets to ensure zero hidden fees:

USA MARKET

All-inclusive pricing. No hidden duties or extra fees at delivery.

AUSTRALIA

Orders under AUD 1,000 are typically tax-free. No GST surprises.

*Other Countries: All import duties and carrier processing fees are the buyer's responsibility.

30-Day Returns & Warranty +

30-Day Returns: Return or exchange within 30 days of delivery. (Shipping at buyer's expense).

Limited Lifetime Warranty: Covers manufacturing defects. (Excludes racing misuse).
