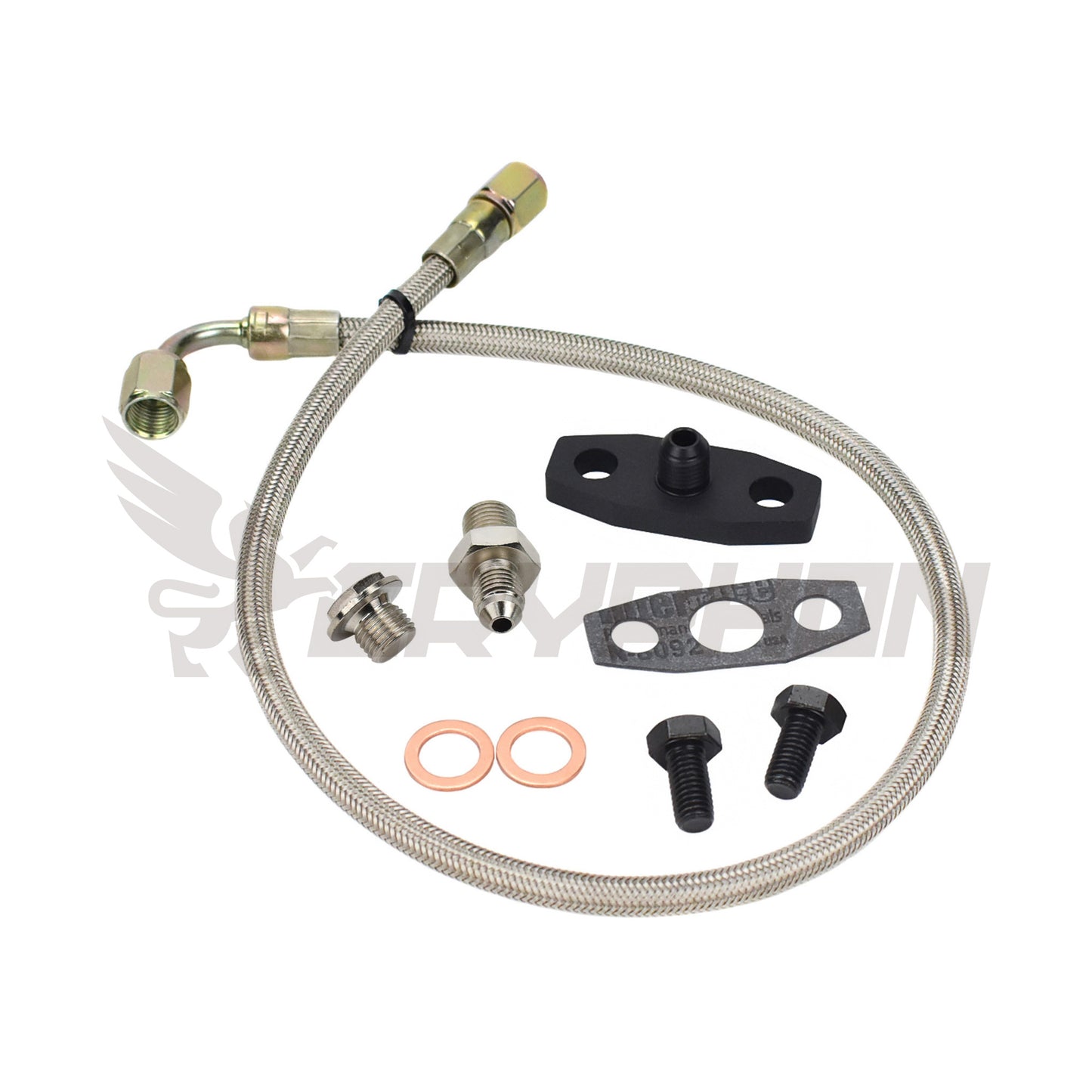

• Turbo oil feed line kit for Toyota 1JZ-GTE / 2JZ-GTE with Garrett G40 G42 G45 turbos, includes 4AN braided PTFE hose, CNC flange, restrictor, gasket, and fittings.
  • PTFE Teflon stainless braided hose for turbo, heat-resistant and durable
1 2

Toyota 1JZ 2JZ Turbo Oil Feed Line Kit for Garrett G40 G42 G45

Toyota 1JZ 2JZ Turbo Oil Feed Line Kit for Garrett G40 G42 G45

$89.78 USD
$0.00 USD $89.78 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

48H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
View full details

Technical Description

This oil feed line kit is for Garrett G40, G42, and G45 single turbo setups on Toyota 1JZ-GTE and 2JZ-GTE engines.

JZ engines produce high oil pressure, which can lead to excessive oil flow even in large frame ball bearing turbos. Too much oil can cause leaks, turbo smoking, or seal issues.

This kit uses a 2.0mm restrictor with a -4AN PTFE line to help maintain stable oil supply while preventing over-oiling under high load conditions.

  • Controlled Oil Flow: 2.0mm restrictor helps manage oil pressure
  • Prevents Over-Oiling: Helps reduce leaks and turbo smoke
  • Heat Resistant Line: PTFE core handles high temperature
  • Direct Fitment: Includes matching fittings for proper install

Specifications & Data

Kit Included +

• -4AN PTFE oil feed line
• Oil feed flange with 2.0mm restrictor
• Flange gasket
• Mounting hardware
• Engine block oil fitting
• Copper washers

Vehicle Compatibility +

• Make: Toyota
• Model: Supra JZA70 / JZA80, Chaser JZX90 / JZX100, Soarer JZZ30
• Engine: 1JZ-GTE / 2JZ-GTE Single Turbo Conversions

Turbo Compatibility +

• Garrett G-Series G40 G42 G45

Product Specifications +

• Feed Line Size: -4AN
• Restrictor Size: 2.0mm
• Flange: 6061-T6 Billet Aluminum
• Material: PTFE inner with stainless braided outer
