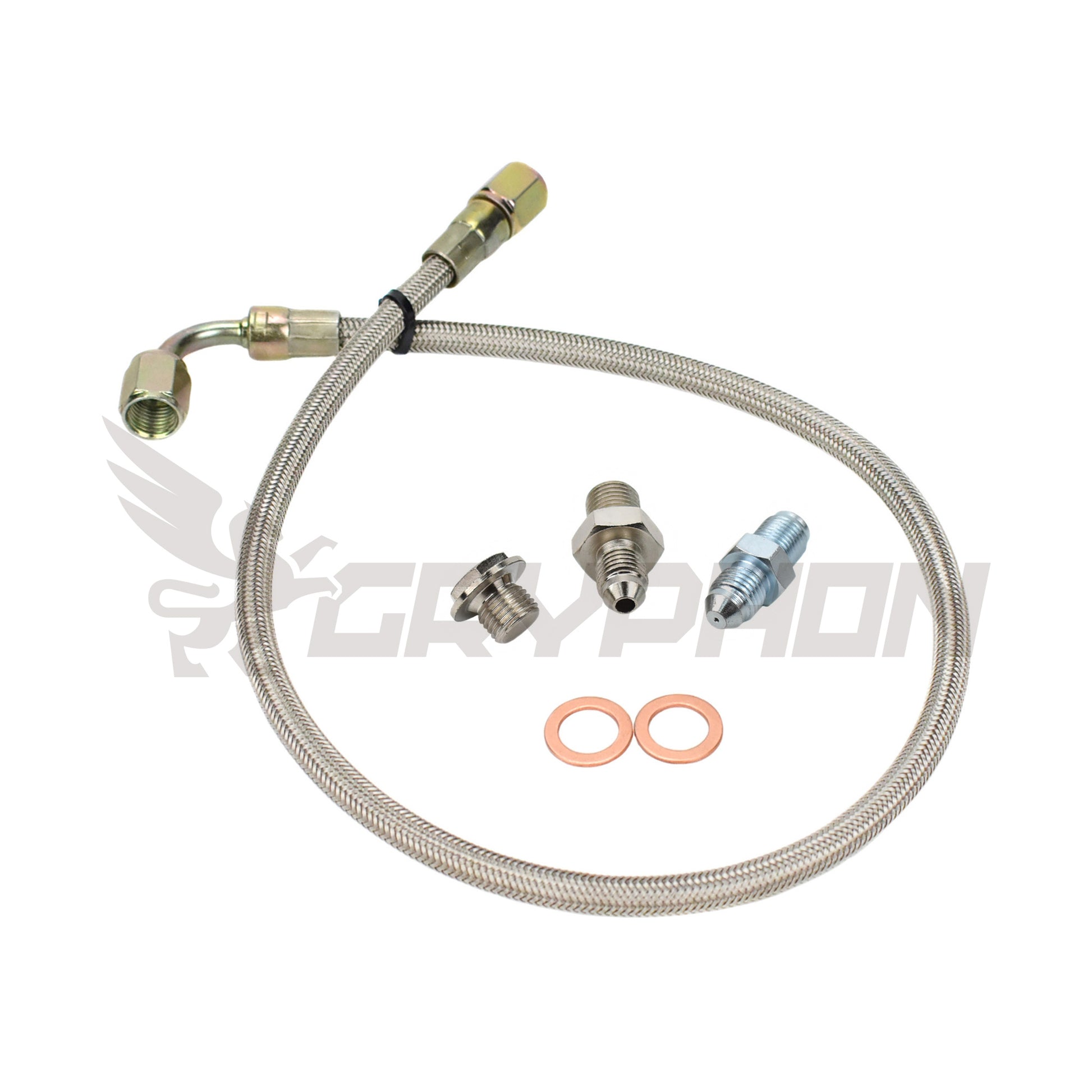

• Turbo oil feed line kit for Toyota 1JZ-GTE / 2JZ-GTE with Garrett G25 G30 G35 turbos, includes 4AN braided PTFE hose, 1.0mm restrictor fitting, and hardware.

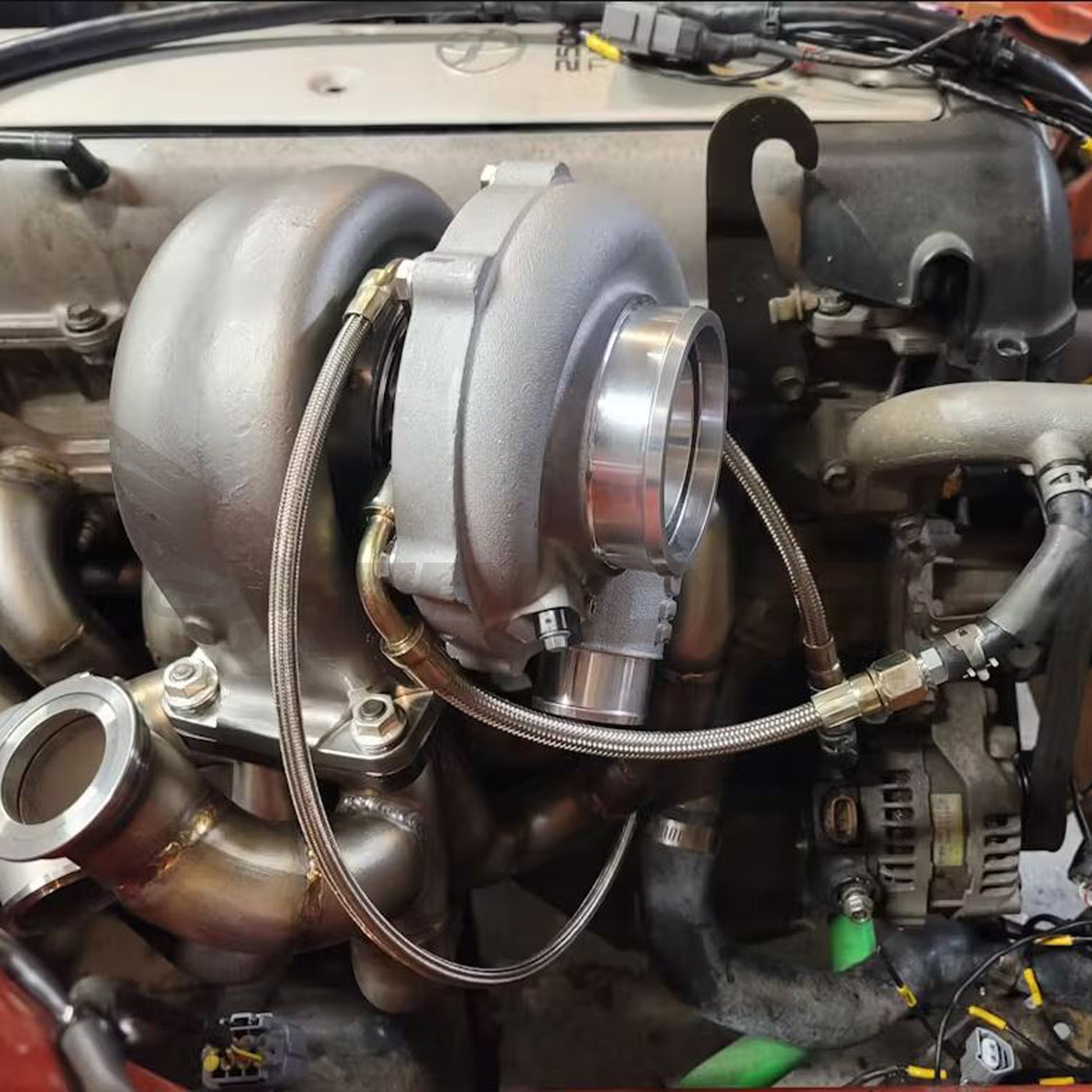

  • 1JZ 2JZ Turbo Oil Feed Line Installed
  • PTFE Teflon stainless braided hose for turbo, heat-resistant and durable
1 4

Toyota 1JZ 2JZ Turbo Oil Feed Line Kit for Garrett G25 G30 G35 | 1.0mm Restrictor

Toyota 1JZ 2JZ Turbo Oil Feed Line Kit for Garrett G25 G30 G35 | 1.0mm Restrictor

$85.93 USD
$0.00 USD $85.93 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

48H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
View full details

Technical Description

This oil feed line kit is intended for Garrett G25, G30, and G35 single top mount turbo setups on Toyota 1JZ-GTE and 2JZ-GTE engines.

Modern G-Series turbos use ball bearing center sections that are sensitive to oil pressure. Excess oil supply can lead to leaks, smoke, or reduced seal life.

This kit uses a 1.0mm oil feed configuration with a -4AN PTFE line to help regulate oil flow and support stable operation without the need to mix different fittings.

  • Controlled Oil Supply: 1.0mm setup for G-Series ball bearing turbos
  • Helps Reduce Smoke: Limits excess oil entering the turbo
  • Heat Tolerant Line: PTFE core handles high temperature environments
  • Clean Fitment: Includes matched fittings for straightforward install

Specifications & Data

Kit Included +

• -4AN PTFE oil feed line
• 1.0mm restrictor fitting
• Engine block oil adapter
• Copper washers

Vehicle Compatibility +

• Make: Toyota
• Model: Supra JZA70 / JZA80, Chaser JZX90 / JZX100, Soarer JZZ30
• Engine: 1JZ-GTE / 2JZ-GTE Single Turbo Conversions

Turbo Compatibility +

• Garrett G-Series G25 G30 G35 Ball Bearing

Product Specifications +

• Feed Line Size: -4AN
• Restrictor Size: 1.0mm
• Material: PTFE inner with stainless braided outer

Support & Logistics

Shipping & Global Export +

Proudly exported to 75+ countries. All orders are dispatched via DHL Express, FedEx, or EMS from our Taiwan hub.

  • AU / USA: 3-5 Business Days.
  • Rest of World: 5-12 Business Days.
  • Tracking: End-to-end tracking number provided within 48H.
Import Duties & Taxes +

We’ve optimized our tax process for core markets to ensure zero hidden fees:

USA MARKET

All-inclusive pricing. No hidden duties or extra fees at delivery.

AUSTRALIA

Orders under AUD 1,000 are typically tax-free. No GST surprises.

*Other Countries: All import duties and carrier processing fees are the buyer's responsibility.

30-Day Returns & Warranty +

30-Day Returns: Return or exchange within 30 days of delivery. (Shipping at buyer's expense).

Limited Lifetime Warranty: Covers manufacturing defects. (Excludes racing misuse).
