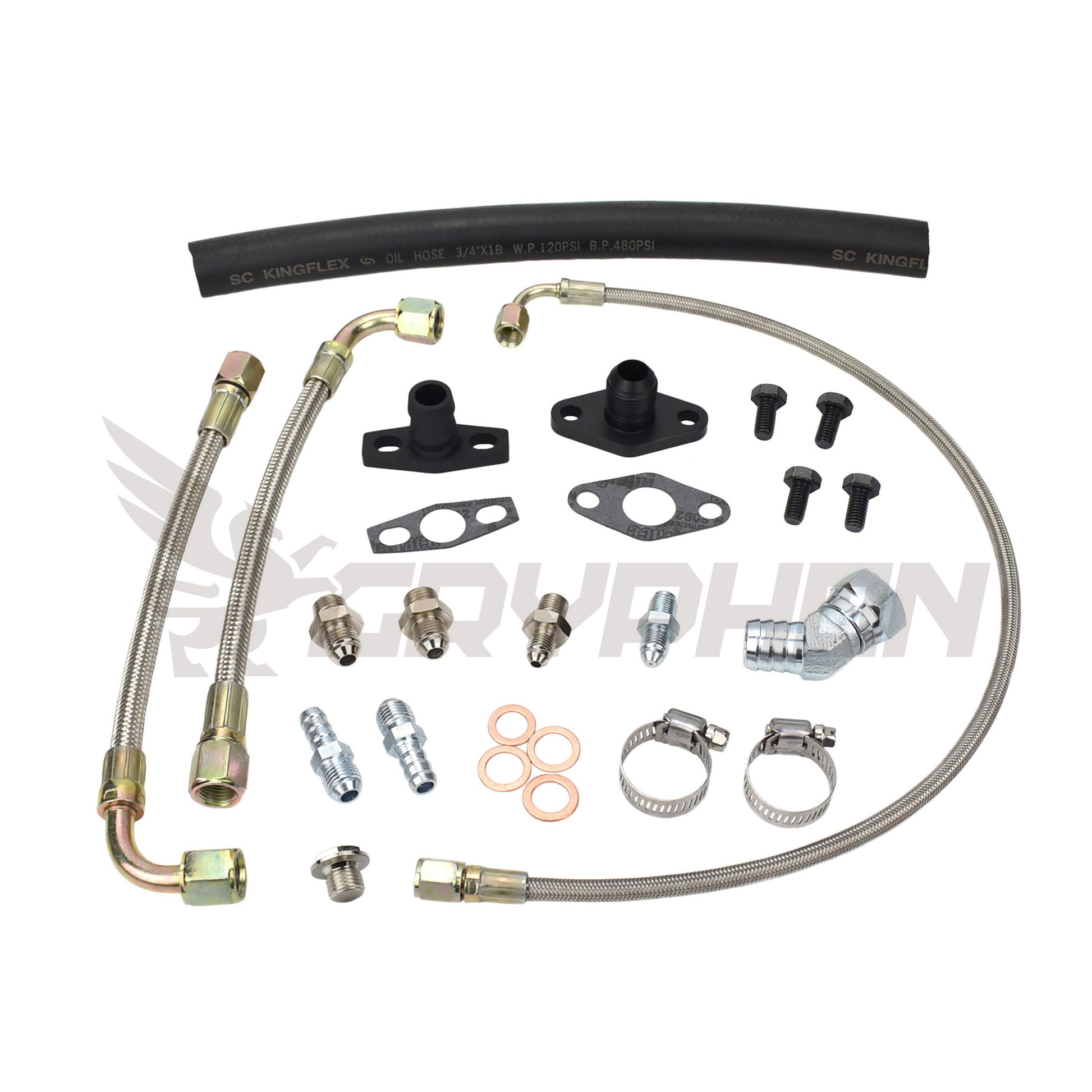

• Turbo Oil Water Line Kit Toyota Supra 1JZ 2JZ with Garrett G-Series G25 G30 G35

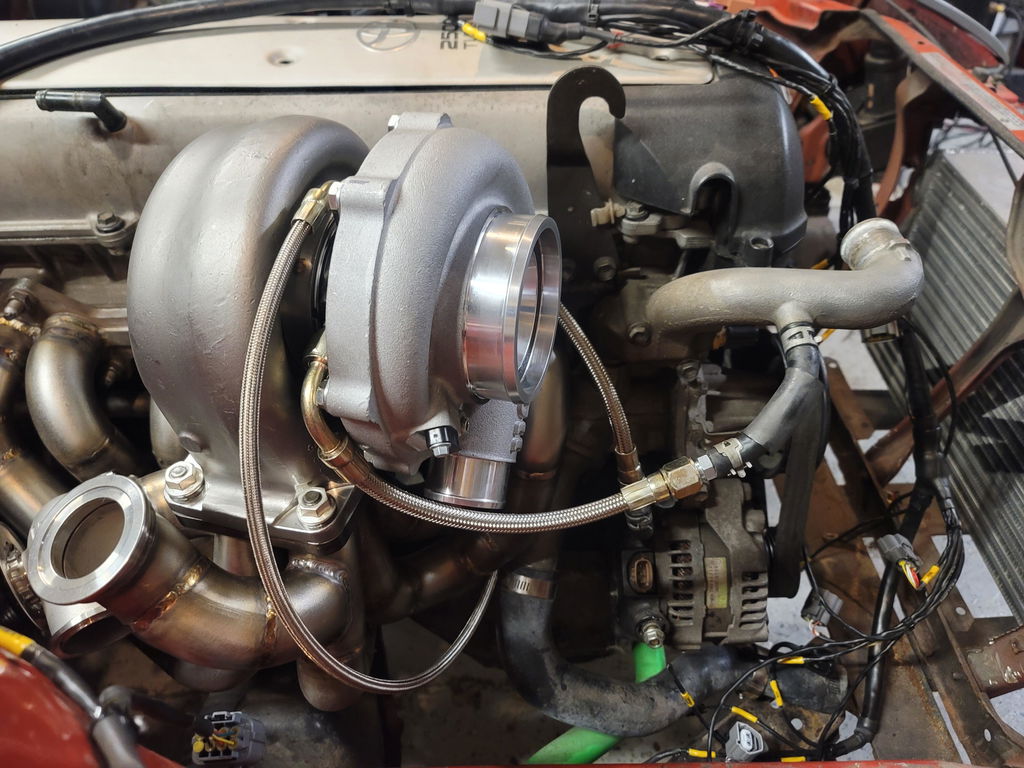

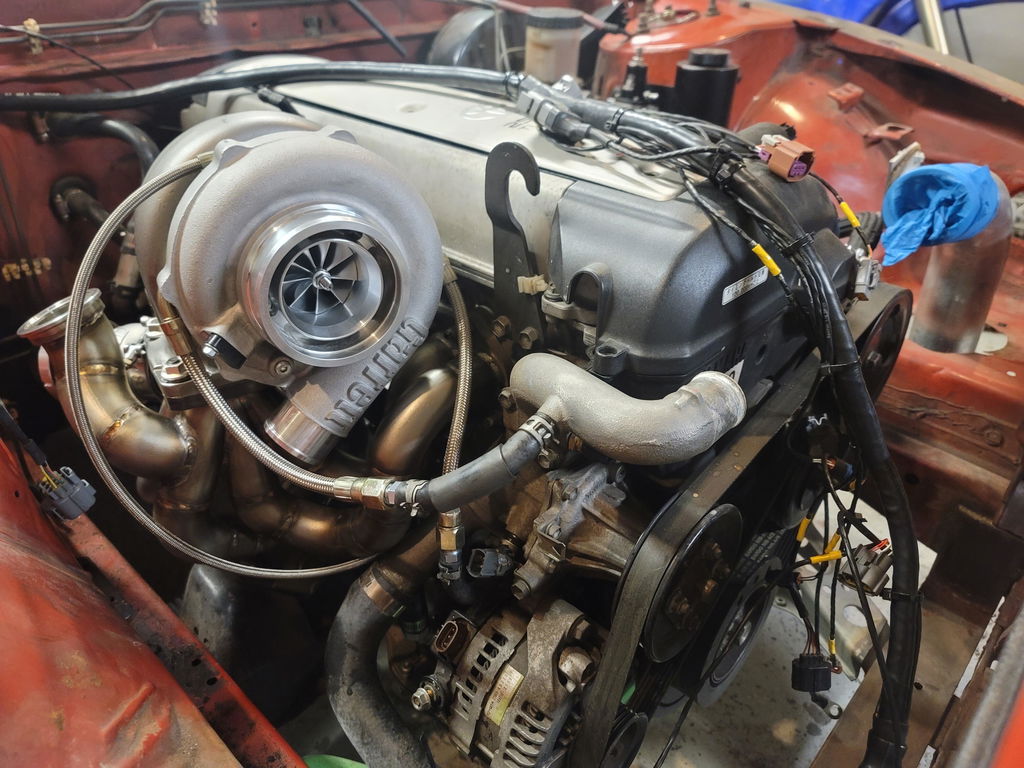

  • 1JZ 2JZ Turbo Oil Feed Line Installed
  • PTFE Teflon stainless braided hose for turbo, heat-resistant and durable
1 5

Toyota 1JZ 2JZ Full Turbo Oil Water Line Kit for Garrett G25 G30 G35

Toyota 1JZ 2JZ Full Turbo Oil Water Line Kit for Garrett G25 G30 G35

$161.99 USD
$0.00 USD $161.99 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

48H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
View full details

Technical Description

This full kit includes oil feed, oil drain, and coolant lines for Garrett G25, G30, and G35 single top mount turbo setups on Toyota 1JZ-GTE and 2JZ-GTE engines.

Modern turbo setups require proper oil and coolant routing to avoid leaks, smoke, or heat-related issues.

We include the 1.0mm restrictors, high-flow drains, and -6AN lines to eliminate thread errors and maintain fluid integrity. It supports stable operation in single turbo builds.

  • Complete System: Oil and coolant lines in one kit
  • Reduces Setup Errors: Matched components included
  • Stable Operation: Helps reduce leaks and smoke
  • Ready for Conversion: Designed for G-Series setups

Specifications & Data

Kit Included +

• -4AN oil feed line
• Oil feed fitting with 1.0mm restrictor
• 3/4" drain hose
• Feed and drain fittings
• Gaskets and hardware
• -6AN PTFE braided water lines
• Engine-side coolant adapters
• Copper crush washers
• Turbo coolant fittings

Vehicle Compatibility +

• Make: Toyota
• Model: Supra JZA70 / JZA80, Chaser JZX90 / JZX100, Soarer JZZ30
• Engine: 1JZ-GTE / 2JZ-GTE Single Turbo Conversions

Turbo Compatibility +

• Garrett G-Series G25 G30 G35 Ball Bearing

Product Specifications +

• Feed Line Size: -4AN
• Restrictor Size: 1.0mm
• Material: PTFE inner with stainless braided outer
• Oil Drain Size: 3/4" (19mm) NBR hose
• Flange: 6061-T6 aluminum flange
• Hardware: Class 8.8 high-tensile bolts
• Water Line Size: -6AN
• Material: PTFE inner with stainless braided outer
