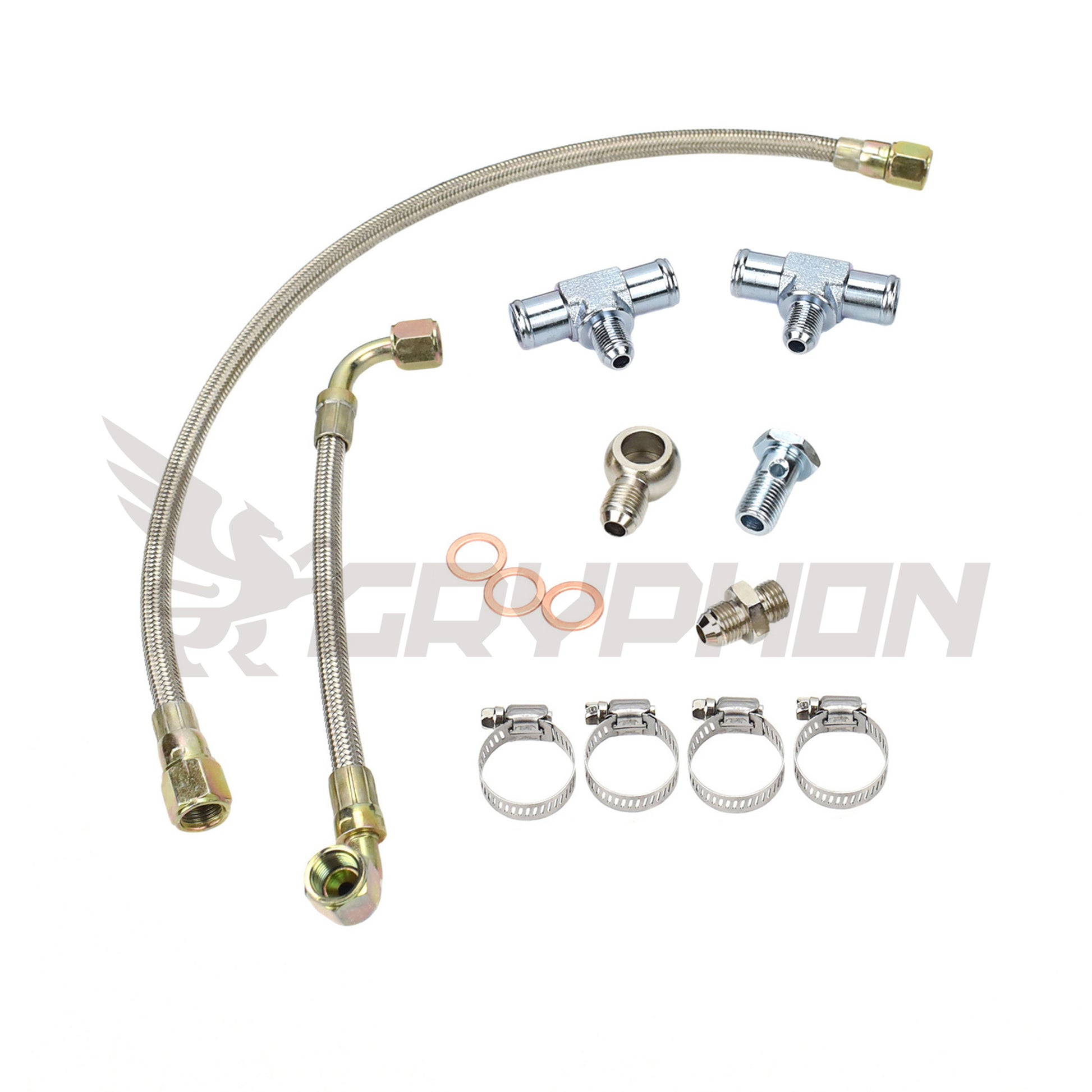

Toyota Land Cruiser 1HZ TD05H Turbo Water Line Kit

Toyota Land Cruiser 1HZ TD05H Turbo Water Line Kit

Regular price $119.68 USD
Regular price $0.00 USD Sale price $119.68 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

48H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
JUNE HOLIDAY SHIPPING UPDATE

Please be advised that June 17 is our final shipping date before the upcoming national holiday break.

June 17 Last Dispatch
June 18-21 No Shipping
June 22 Regular Resumes

Technical support remains active during the holiday period.

View full details

Technical Description

This turbo water line kit is designed for Toyota Land Cruiser 1HZ diesel engines using a water-cooled TD05H turbocharger.

For 1HZ N/A to turbo conversion builds, the engine does not have factory turbo coolant lines, so a custom turbo water feed and return setup must be created. This kit provides the main water-side components required for the conversion, including -6AN PTFE stainless braided water lines, water T-fittings, turbo-side water fittings, copper crush washers, and stainless steel clamps.

The included water T-fittings help connect the turbo water lines to the factory heater hose circuit, reducing the need to source separate fittings for a custom TD05H coolant line setup.

Key Features
• Designed for Toyota 1HZ diesel engines with water-cooled TD05H turbo conversions
• Includes -6AN PTFE stainless braided turbo water feed and return lines
• Includes water T-fittings, turbo-side fittings, copper washers, and stainless clamps
• Helps connect the turbo water lines to the factory heater hose circuit

Technical Support

Confused about water line routing for your 1HZ? Read our [1HZ Turbo Plumbing Technical Guide] to see how our -6AN lines and T-fitting solution simplify the installation.

Specifications & Data

Kit Included +

• -6AN PTFE stainless braided turbo water feed and return lines
• Water T-fittings
• Turbo-side water fittings
• Copper crush washers
• Stainless steel clamps

Vehicle Compatibility +

• Toyota Land Cruiser 70 / 75 / 78 / 79 / 80 / 105 Series (1HZ Engine)

Turbo Compatibility +

• TD05H Series

Product Specifications +

• Water Lines: -6AN PTFE Core with Stainless Steel Braid
• Fittings: Mild Steel
