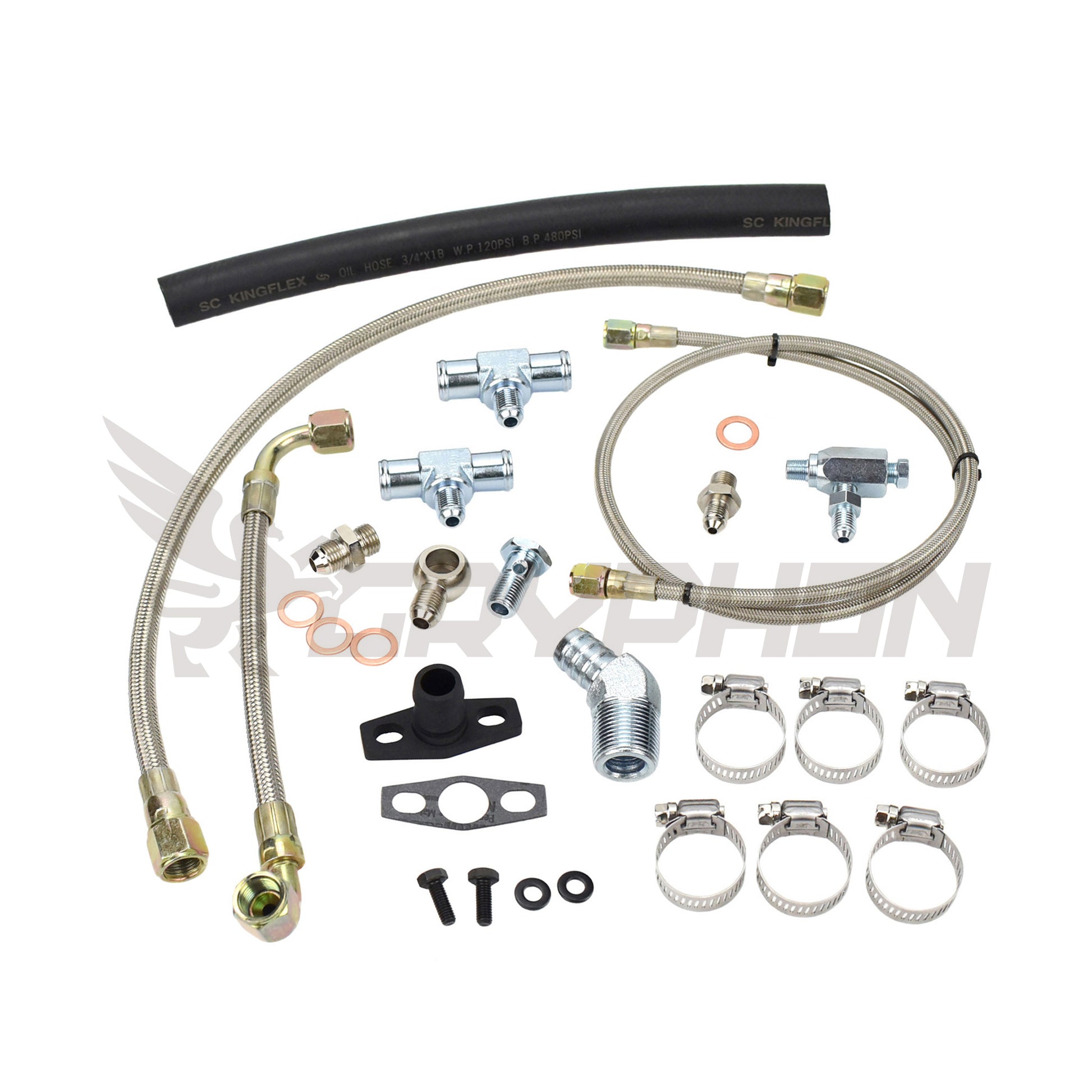

• 4AN PTFE stainless braided turbo oil feed line
• 3/4" high-flow NBR turbo oil drain hose
• 6AN turbo water feed and return lines
• 1.8mm oil feed restrictor fitting
• 1/8 BSPT T-fitting
• Turbo and engine side fittings
• Gaskets and clamps
Toyota Land Cruiser 1HZ TD05H Turbo Oil & Water Line Kit
Toyota Land Cruiser 1HZ TD05H Turbo Oil & Water Line Kit
Regular price
$175.49 USD
Regular price
Sale price
$175.49 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
No PayPal Account Required
We accept Visa, Mastercard, Amex, JCB
Click PayPal, then select "Pay with a Card"
Worldwide
DHL, FEDEX, EMSFast Ship
48H DispatchFree Ship
AU/US & MoreTailored
Customizable30-Day
ReturnsSecured
SSL Encrypted
JUNE HOLIDAY SHIPPING UPDATE
Please be advised that June 17 is our final shipping date before the upcoming national holiday break.
June 17
Last Dispatch
June 18-21
No Shipping
June 22
Regular Resumes
Technical support remains active during the holiday period.
Technical Description
This turbo oil and water line kit is designed for Toyota Land Cruiser 1HZ diesel engines using a TD05H turbocharger.
For 1HZ N/A to turbo conversion builds, the oil feed, oil drain, and turbo water lines must be set up correctly. This kit provides the main oil and water plumbing components required for the conversion, including a 4AN PTFE stainless braided oil feed line, 3/4" NBR oil drain hose, 6AN turbo water lines, 1.8mm restrictor fitting, 1/8 BSPT T-fitting, turbo fittings, gaskets, and clamps.
The included T-fitting allows the turbo oil feed to be taken from the factory 1/8 BSPT oil pressure port while retaining the original oil pressure sensor. The 1.8mm restrictor helps control oil feed flow for TD05H journal bearing turbo applications.
Key Features
• Designed for Toyota 1HZ diesel engines with TD05H turbo conversions
• Includes 4AN oil feed line, 3/4" NBR oil drain hose, and 6AN water lines
• Includes 1/8 BSPT T-fitting to retain the factory oil pressure sensor
• 1.8mm restrictor helps control oil feed flow for TD05H journal bearing turbo applications
Technical Support
Confused about oil feed sources or water line routing for your 1HZ? Read our [1HZ Turbo Plumbing Technical Guide] to see how our -6AN lines and T-fitting solution simplify the installation.
