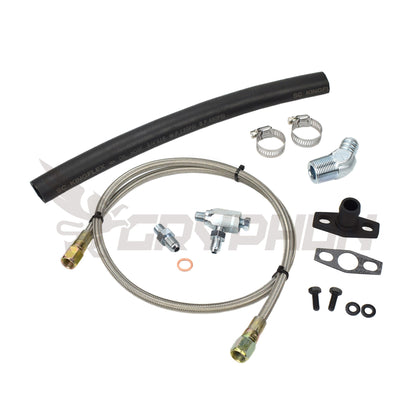

• Turbo Oil Feed Return Line Kit Toyota Land Cruiser 1HZ with TD05H
  • PTFE Teflon stainless braided hose for turbo, heat-resistant and durable
1 3

Toyota Land Cruiser 1HZ TD05H Turbo Oil Feed & Return Line Kit

Toyota Land Cruiser 1HZ TD05H Turbo Oil Feed & Return Line Kit

$120.15 USD
$0.00 USD $120.15 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

48H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
View full details

Technical Description

This turbo oil feed and return line kit is designed for Toyota Land Cruiser 1HZ diesel engines using a TD05H turbocharger.

For 1HZ N/A to turbo conversion builds, the oil feed source and oil drain routing must be set up correctly. This kit provides the main oil-side components required for the conversion, including a 4AN PTFE stainless braided oil feed line, 3/4" NBR oil drain hose, 1.8mm oil restrictor fitting, 1/8 BSPT T-fitting, TD05H drain flange, gaskets, and clamps.

The included T-fitting allows the turbo oil feed to be taken from the factory 1/8 BSPT oil pressure port while retaining the original oil pressure sensor. The 1.8mm restrictor helps control oil feed flow for TD05H journal bearing turbo applications.

Key Features
• Designed for Toyota 1HZ diesel engines with TD05H turbo conversions
• Includes 4AN oil feed line, 3/4" NBR oil drain hose, and TD05H drain flange
• Includes 1/8 BSPT T-fitting to retain the factory oil pressure sensor
• 1.8mm restrictor helps control oil feed flow for TD05H journal bearing turbo applications

Technical Support

Confused about oil feed sources routing for your 1HZ? Read our [1HZ Turbo Plumbing Technical Guide] to see how our T-fitting solution simplify the installation.

Specifications & Data

Kit Included +

• 4AN PTFE stainless braided turbo oil feed line
• 3/4" high-flow NBR turbo oil drain hose
• 1.8mm oil restrictor fitting
• 1/8 BSPT T-fitting
• TD05H aluminum turbo oil drain flange
• Interface N-8092 gaskets
• Stainless steel clamps

Vehicle Compatibility +

• Toyota Land Cruiser 70 / 75 / 78 / 79 / 80 / 105 Series (1HZ Engine)

Turbo Compatibility +

• TD05H Series

Product Specifications +

• Oil Feed: 4AN PTFE Core with Stainless Steel Braid
• Oil Drain: 3/4" High-Flow NBR Rubber
• Fitting Adapter: Zinc-Plated Mild Steel
• Turbo Flange: 6061-T6 Billet Aluminum
• Gaskets: Interface N-8092 Non-asbestos
