Toyota Land Cruiser 1HZ GT28R Turbo Oil & Water Line Kit

Toyota Land Cruiser 1HZ GT28R Turbo Oil & Water Line Kit

$178.88 USD
$0.00 USD $178.88 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

48H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
View full details

Technical Description

This turbo oil and water line kit is designed for Toyota Land Cruiser 1HZ diesel engines using a Garrett GT28R turbocharger.

For 1HZ N/A to turbo conversion builds, the oil feed, oil drain, and turbo water lines must be set up correctly. This kit provides the main oil and water plumbing components required for the conversion, including a 4AN PTFE stainless braided oil feed line, 3/4" NBR oil drain hose, 6AN turbo water lines, 1.0mm restrictor fitting, 1/8 BSPT T-fitting, turbo fittings, gaskets, and clamps.

The included T-fitting allows the turbo oil feed to be taken from the factory 1/8 BSPT oil pressure port while retaining the original oil pressure sensor. The 1.0mm restrictor helps control oil feed flow for Garrett GT28R ball bearing turbo applications.

Key Features
• Designed for Toyota 1HZ diesel engines with Garrett GT28R turbo conversions
• Includes 4AN oil feed line, 3/4" NBR oil drain hose, and 6AN water lines
• Includes 1/8 BSPT T-fitting to retain the factory oil pressure sensor
• 1.0mm restrictor helps control oil feed flow for GT28R ball bearing turbo applications

Technical Support

Confused about oil feed sources or water line routing for your 1HZ? Read our [1HZ Turbo Plumbing Technical Guide] to see how our -6AN lines and T-fitting solution simplify the installation.

Specifications & Data

Kit Included +

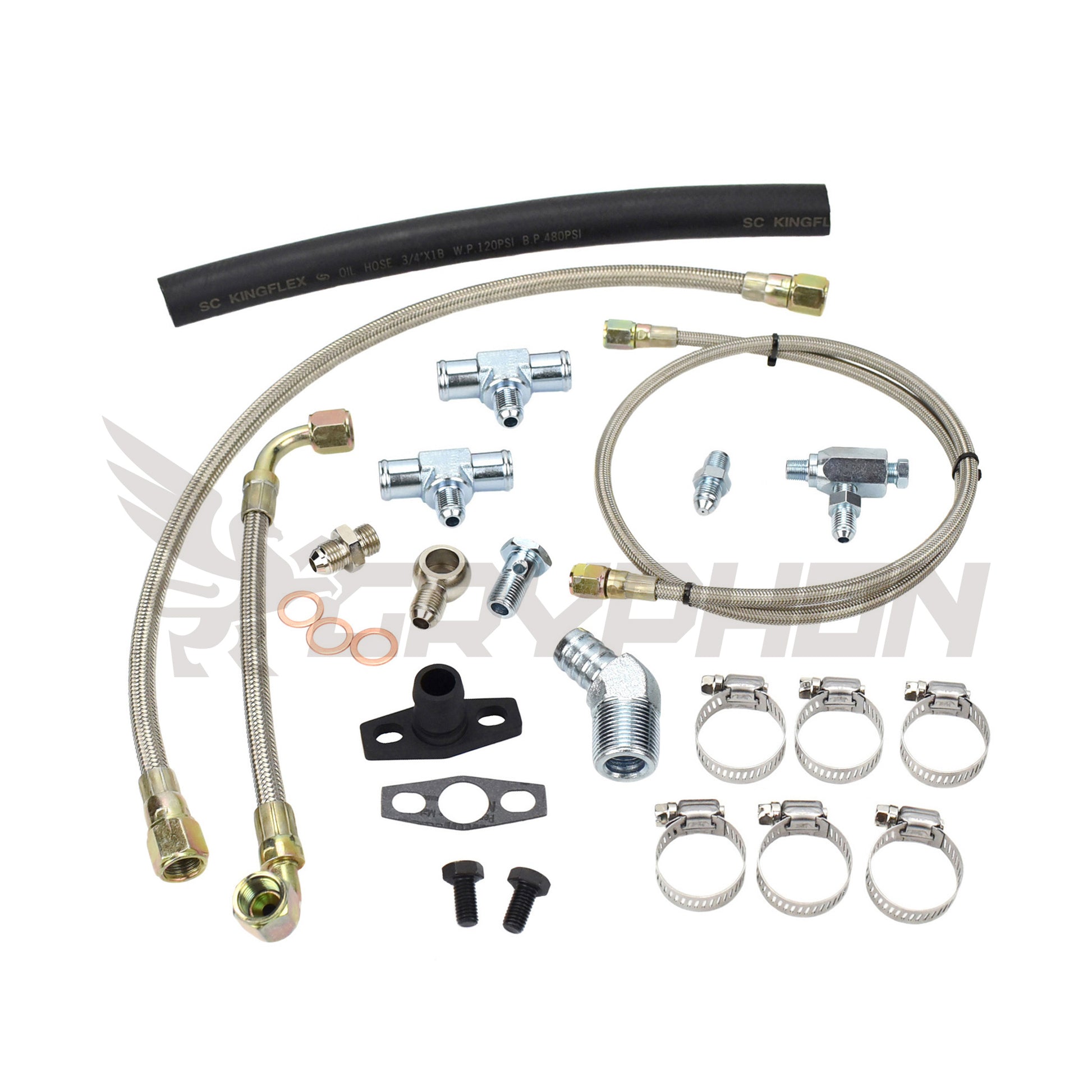

• 4AN PTFE stainless braided turbo oil feed line
• 3/4" high-flow NBR turbo oil drain hose
• 6AN turbo water feed and return lines
• 1.0mm oil feed restrictor fitting
• 1/8 BSPT T-fitting
• Turbo and engine side fittings
• Gaskets and clamps

Vehicle Compatibility +

• Toyota Land Cruiser 70 / 75 / 78 / 79 / 80 / 105 Series (1HZ Engine)

Turbo Compatibility +

• Garrett GT28R

Product Specifications +

• Oil Feed: 4AN PTFE Core with Stainless Steel Braid
• Oil Drain: 3/4" High-Flow NBR
• Water Lines: 6AN Stainless Steel Braid
• Adapters: Mild Steel
• Turbo Flanges: 6061-T6 Billet Aluminum
