• Turbo Oil Feed Return Line Kit Toyota Supra 1JZ 2JZ with Garrett GT37R GT40R GT42R GT45R
  • PTFE Teflon stainless braided hose for turbo, heat-resistant and durable
1 3

Toyota 1JZ 2JZ Complete Turbo Oil Line Kit for Garrett GT40R GT42R GT45R GT47R

Toyota 1JZ 2JZ Complete Turbo Oil Line Kit for Garrett GT40R GT42R GT45R GT47R

$134.97 USD
$0.00 USD $134.97 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

48H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
View full details

Technical Description

This oil line kit is for Garrett GT40R, GT42R, GT45R, and GT47R single top mount turbo conversions on Toyota 1JZ-GTE and 2JZ-GTE engines.

High oil pressure combined with restricted drain flow can lead to oil leaks, turbo smoking, or seal damage.

This kit combines a 2.0mm oil feed setup with a 3/4" high-flow drain system to control oil pressure while allowing unrestricted return flow.

  • Balanced Oil System: Controlled feed with free-flow return
  • Prevents Oil Issues: Helps reduce leaks, smoke, and seal damage
  • Stable Operation: Supports high boost setups
  • Complete Kit: No need to source components separately

Specifications & Data

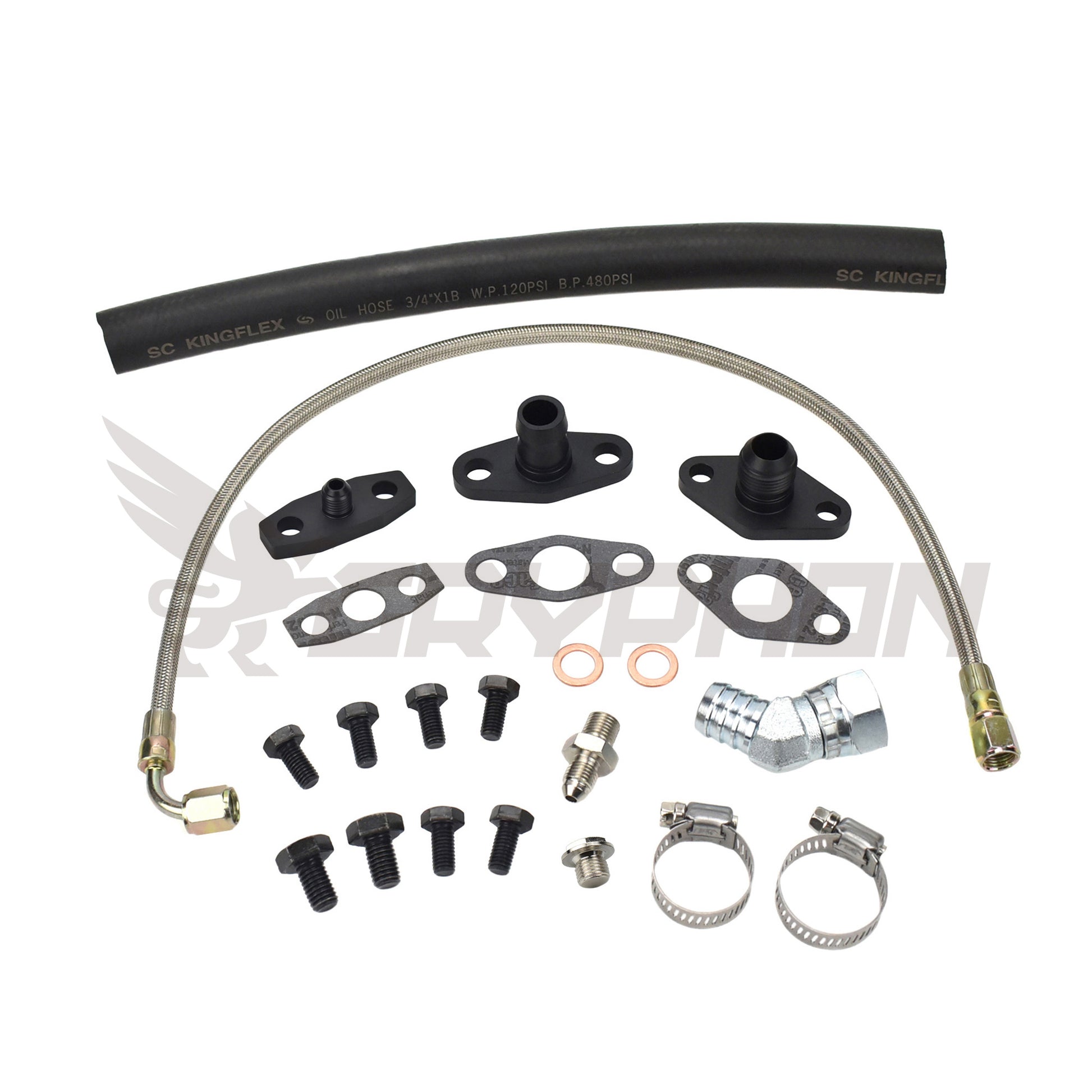

Kit Included +

• -4AN PTFE feed line
• Oil feed flange with 2.0mm restricted
• 3/4" High-flow NBR drain hose
• 3/4" Barb oil drain flange
• Full gasket and hardware set

Vehicle Compatibility +

• Make: Toyota
• Model: Supra JZA70 / JZA80, Chaser JZX90 / JZX100, Soarer JZZ30
• Engine: 1JZ-GTE / 2JZ-GTE Single Turbo Conversions

Turbo Compatibility +

• Garrett GT40R GT42R GT45R GT47R

Product Specifications +

• Feed Line Size: -4AN
• Restrictor Size: 2.0mm
• Material: PTFE inner with stainless braided outer
• 3/4" (19mm) NBR hose
• Class 8.8 high-tensile bolts
• Flange: 6061-T6 Billet Aluminum

Support & Logistics

Shipping & Global Export +

Proudly exported to 75+ countries. All orders are dispatched via DHL Express, FedEx, or EMS from our Taiwan hub.

  • AU / USA: 3-5 Business Days.
  • Rest of World: 5-12 Business Days.
  • Tracking: End-to-end tracking number provided within 48H.
Import Duties & Taxes +

We’ve optimized our tax process for core markets to ensure zero hidden fees:

USA MARKET

All-inclusive pricing. No hidden duties or extra fees at delivery.

AUSTRALIA

Orders under AUD 1,000 are typically tax-free. No GST surprises.

*Other Countries: All import duties and carrier processing fees are the buyer's responsibility.

30-Day Returns & Warranty +

30-Day Returns: Return or exchange within 30 days of delivery. (Shipping at buyer's expense).

Limited Lifetime Warranty: Covers manufacturing defects. (Excludes racing misuse).

GryphonTek Engineering — Precision Fitment. Global Delivery.
