Mazda MX5 Miata MK1 MK2 MK2.5 + Holset HX30 HX35 Turbo Oil Drain Hose Kit

Mazda MX5 Miata MK1 MK2 MK2.5 + Holset HX30 HX35 Turbo Oil Drain Hose Kit

$67.35 USD
$67.35 USD
Sale Sold out
Shipping calculated at checkout.

High-Flow Oil Drain System for Holset HX30 / HX35 Miata Turbo Builds

When installing one of these turbos on a Mazda MX-5 Miata MK1 (NA), MK2, or MK2.5 (NB), a high-flow oil drain system is mandatory—N/A Miata engines do not include turbo drain provisions. Using restrictive aftermarket flanges or small-diameter hoses can quickly lead to oil pooling, smoking, and bearing damage.

This Gryphontek High-Flow turbo oil drain hose kit solves that problem with a 6061-T6 CNC-machined drain flange featuring an enlarged bottom drain port, combined with a 19mm inner diameter NBR oil drain hose engineered specifically for the higher return volume of HX30/HX35 turbos.

Built for boosted Miatas targeting strong midrange torque, big power, and long-term turbo reliability.

Key Features

‣ Application: Mazda MX-5 Miata MK1 (NA) / MK2 / MK2.5 (NB) — N/A → Turbo conversion
‣ Turbo Compatibility: Holset HX30 / HX35
‣ High-Flow Engineering: Enlarged bottom drain port prevents restriction and improves return velocity
‣ Hose Construction: Large-diameter high-temp NBR oil drain hose for unrestricted drainage
‣ Flange Material: 6061-T6 CNC-machined aluminum Holset-pattern drain flange
‣ Fittings: Durable mild-steel hose fittings designed for leak-free sealing
‣ Gasket: Interface N-8092 1 mm non-asbestos drain gasket
‣ Hardware: Includes stainless hose clamps + high-tensile class 8.8 bolts
‣ Turbo Conversion Ready: Supplies the crucial high-flow drain components not available on N/A engines
‣ Performance Benefit: Prevents oil backing up into the turbo under high-load/high-volume operation
‣ Custom Length Option: Extended hose available for custom manifold and turbo positioning

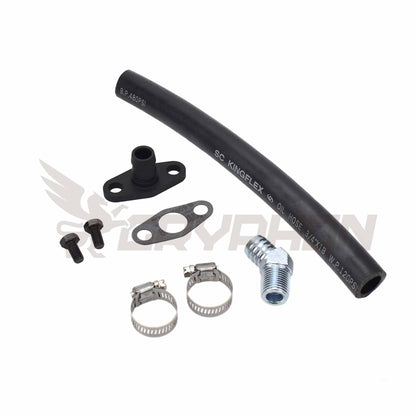

Kit Includes

  • High-flow NBR oil drain hose
  • Holset-pattern 6061-T6 CNC-machined drain flange with enlarged bottom port
  • 1 mm Interface N-8092 drain gasket
  • Mild-steel oil pan fittings
  • High-tensile bolts
  • Hose clamps

High-Flow Drain Capacity for HX30 / HX35 Power Levels

Holset HX30 and HX35 turbos require a high-volume oil return path to function properly.
This Gryphontek kit ensures your Miata turbo conversion includes the correct enlarged-port flange and hose diameter needed to sustain reliable drainage—even under high boost.

⚙️ Equip your Miata Holset build with a true high-flow drain system engineered for HX30/HX35 performance.
