Mazda MX5 Miata MK1 MK2 MK2.5 + Garrett GBC Series GBC20 GBC22 Turbo Oil Drain Hose Kit

Mazda MX5 Miata MK1 MK2 MK2.5 + Garrett GBC Series GBC20 GBC22 Turbo Oil Drain Hose Kit

$72.95 USD
$72.95 USD
Sale Sold out
Shipping calculated at checkout.

Oil Drain System for Miata N/A to Garrett GBC Turbo Conversions

When installing one of these GBC turbos onto a Mazda MX-5 Miata MK1 (NA), MK2, or MK2.5 (NB) that originally came naturally aspirated, a proper turbo oil drain system must be added—since the factory N/A engine has no turbo drain provisions.

This Gryphontek turbo oil drain hose kit provides the correct GBC-pattern flange, NBR oil-resistant drain hose, gasket, fittings, and hardware required to support clean, unrestricted oil return to the oil pan.

Designed specifically for GBC20/GBC22 journal-bearing turbos, it ensures leak-free operation for both daily-driven and performance-built Miata turbo setups.

Key Features

‣ Application: Mazda MX-5 Miata MK1 (NA) / MK2 / MK2.5 (NB) — N/A → Turbo conversion
‣ Turbo Compatibility: Garrett GBC20-300 / GBC22-350 journal-bearing turbos
‣ Hose Construction: High-temperature NBR oil drain hose — flexible, heat-resistant, oil-safe
‣ Flange Material: 6061-T6 CNC-machined aluminum GBC-pattern turbo drain flange
‣ Fittings: Mild-steel oil drain fittings for reliable sealing
‣ Gasket: Interface N-8092 non-asbestos 1 mm drain gasket
‣ Hardware: High-tensile class 8.8 bolts + stainless hose clamps
‣ Turbo Conversion Ready: Provides the essential drain components missing from N/A engines
‣ Performance Benefit: Supports consistent oil return flow for small-frame GBC journal-bearing turbos
‣ Custom Length Option: Extended hose available for varied turbo placement

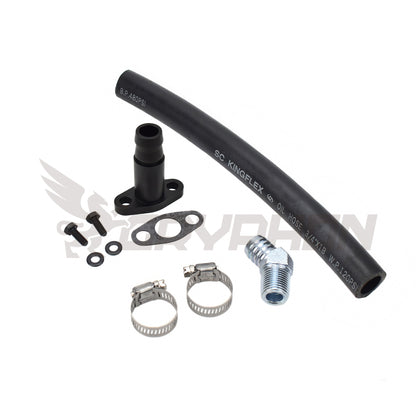

Kit Includes

  • NBR turbo oil drain hose
  • 6061-T6 CNC-machined GBC-pattern turbo drain flange
  • 1 mm Interface N-8092 oil drain gasket
  • Mild-steel oil pan fittings
  • High-tensile bolts
  • Hose clamps

Reliable Oil Return for GBC20/GBC22 Miata Turbo Setups

Garrett GBC turbos require a properly sized drain flange and hose design to ensure stable oil evacuation.
This Gryphontek kit includes all the correct fittings and components needed for a clean, dependable oil return path during Miata N/A → Turbo conversions.

⚙️ Build your GBC20/GBC22 Miata turbo setup with the right oil drain foundation.
